Resistance to Pressure Spring Energized Seal

Resistance to Pressure Spring Energized Seal

Name:Resistance to pressure spring energized seal
Sample: Free
Style: Hydraulic
Material: seals: bronze, glass fiber, carbon, graphite, polyester etc. Filled PTFE spring: stainless steel
Size:Customized
Payment Terms: L/C, T/T, PayPal, Western Union
...

Send Inquiry

Product Description

Spring Energized Seals is a single acting seal consisting of a U-shaped bronze jacket and a U-shaped corrosion resistant spring, spring energized seal is effective in a wide range of applications. They are chosen when higher resistance to chemical media is required to operate in extremes of temperature and where good extrusion and compression characteristics are needed.

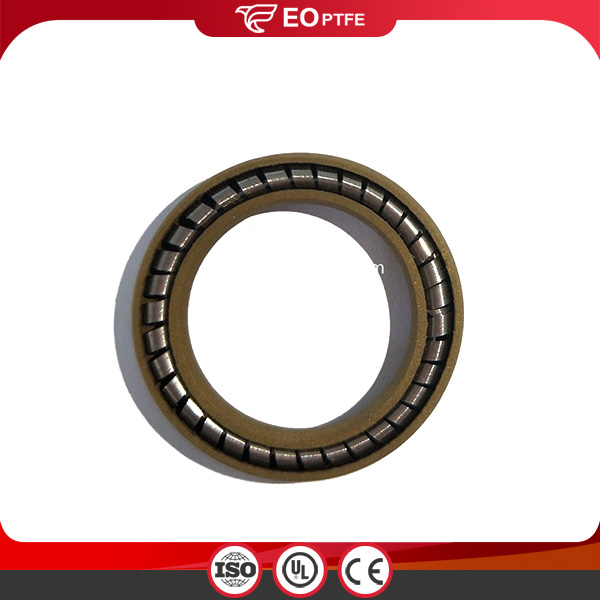

Resistance to pressure spring energized seal
.jpg

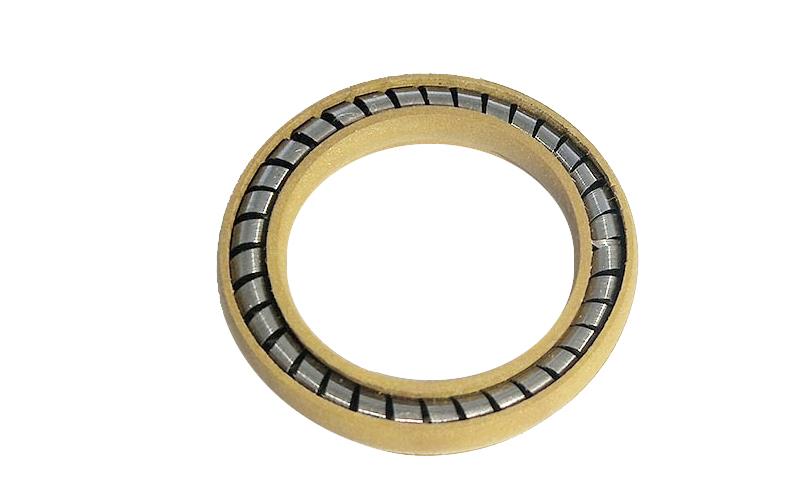

Resistance to pressure spring energized seal
.jpg

Sliding speed[m/s]

15

Temperature [° C]

-55...+260

Pressure Pr:N/mm²

45(max)

Media

Virtually all fluids, chemicals and gases

Material

Sealing ring:Filled PTFE

Steel spring: U-tape spring, V-tape spring

Color

White,black

Application

- Pneumatics, cylinders and valves

- Hydraulic components

- Hydraulic Cylinders

- Valves - Pumps

- Chemical processing equipment

- Pharmaceutical processing

- Aerospace

- Food and beverage processing

- Spindle seals for machine tools

Certificates

ISO9001-2008, SGS

Delivery time

5 to 7 working days, 2 days for in stock

MOQ

20

Supply ability

1,000,000 pcs/month

Export market

South Asia,Southeast Asia,South America,North   America,Africa,Middle East,Australia



Installation Dimension table based on Metric Size

D f8

D h9

L+0.2


h

R1≤

3-8

d+2.9

2.4


2.3

0.2

10-18

d+4.5

3.8


3.4

0.2

20-36

d+6.2

4.6


4.5

0.4

40-115

d+9.4

7.1


6.8

0.4

120-400

d+12.2

9.5


9.2

0.4



Looking for ideal Resistance to pressure spring energized seal Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the PTFE Spring Energized Seal are quality guaranteed. We are China Origin Factory of Spring Energized Steel Seal. Any question, please feel free to contact us.


Packing & Storage

Woven bag or as your requirement

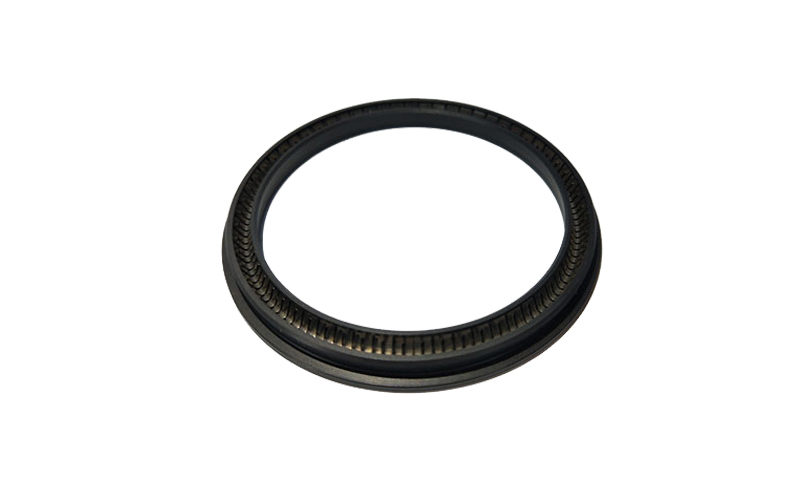

Resistance to pressure spring energized seal
.jpg
