Insulating Round PTFE Bar

Insulating Round PTFE Bar

Product Name:Insulating round ptfe bar
Sample: Free
Method: Extruded or mould
Materials: PTFE
Size: Accept customization
Payment Terms: L/C, T/T, PayPal, Western Union...

Send Inquiry

Product Description

In fluoroplastics, PTFE got the most consumption and was used widely. It’s an important material in variety of fluoroplastics. PTFE resin is in a class of paraffinic polymers that have some or all of the hydrogen replaced by fluoride. PTFE exhibit astonishing chemical resistance. This self-lubricating material provides a low friction coefficient, and is ideally suited for the manufacture of corrosion-resistant gaskets & seals. One of the most chemically resistant materials available, PTFE also handles continuous service temperatures approaching 500F((280° C). It also has a high oxygen level

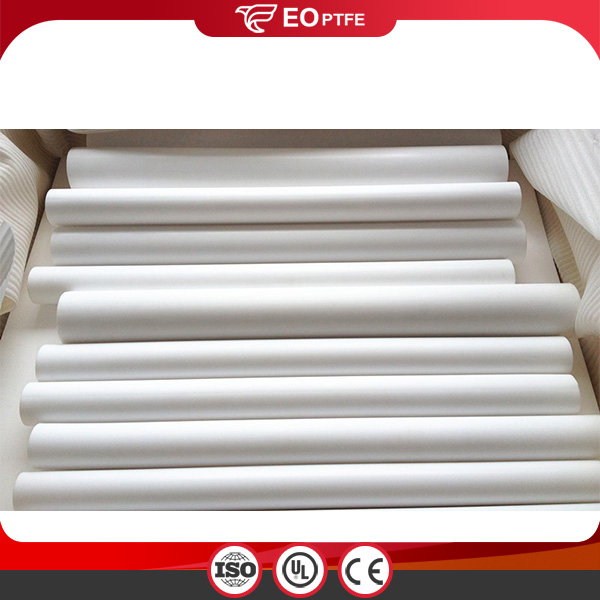

Insulating round ptfe bar
.jpg

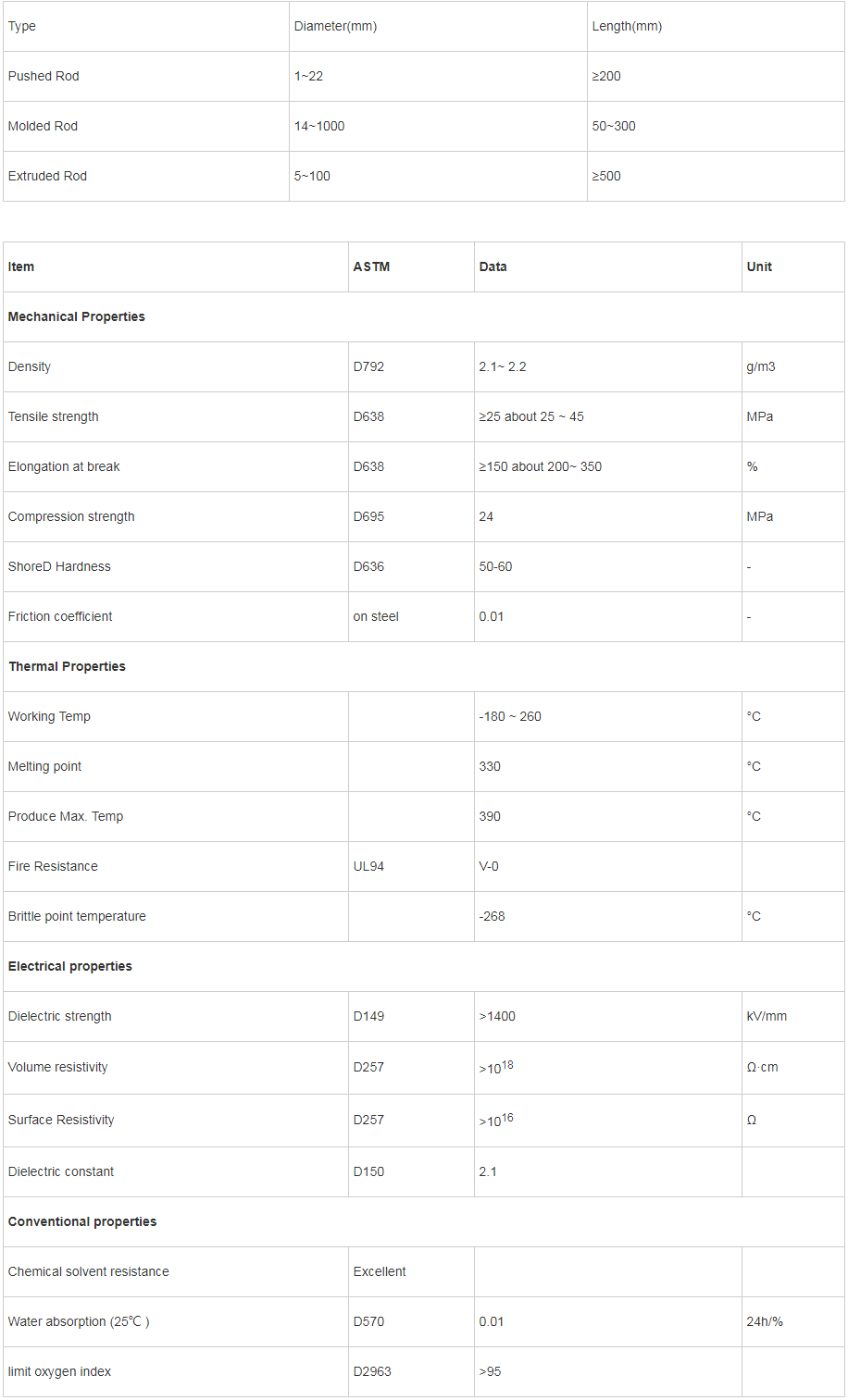

Product Specification

NOTE:We can offer other sizes of rods according to clients' requirement.

Type

Diameter(mm)

Length(mm)

Pushed Rod

1~22

≥200

Molded Rod

14~1000

50~300

Extruded Rod

5~100

≥500


Item

ASTM

Data

Unit

Mechanical Properties

Density

D792

2.1~ 2.2

g/m3

Tensile strength

D638

≥25 about 25 ~ 45

MPa

Elongation at break

D638

≥150 about 200~ 350

%

Compression strength

D695

24

MPa

ShoreD Hardness

D636

50-60

-

Friction coefficient

on steel

0.01

-

Thermal Properties

Working Temp

-180 ~ 260

°C

Melting point

330

°C

Produce Max. Temp

390

°C

Fire Resistance

UL94

V-0

Brittle point temperature

-268

°C

Electrical properties

Dielectric strength

D149

>1400

kV/mm

Volume resistivity

D257

>1018

Ω·cm

Surface Resistivity

D257

>1016

Ω

Dielectric constant

D150

2.1

Conventional properties

Chemical solvent resistance

Excellent

Water absorption (25℃ )

D570

0.01

24h/%

limit oxygen index

D2963

>95

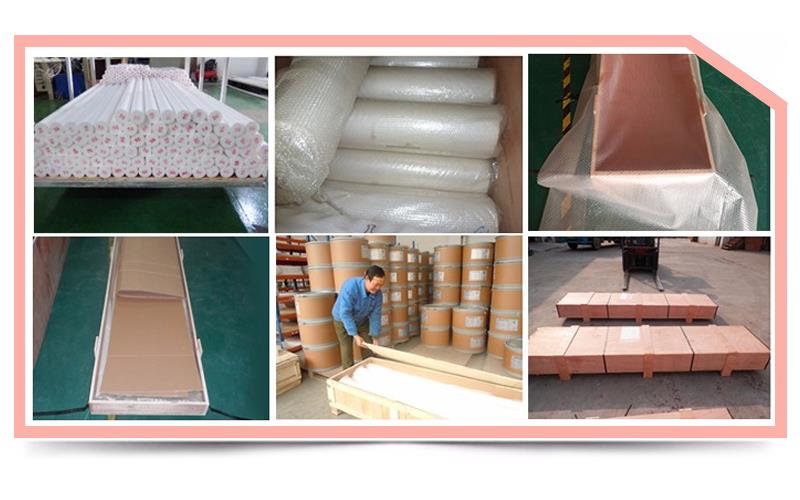

Product Packaging

Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

Insulating round ptfe bar
.jpg

Company Profile

Insulating round ptfe bar
.jpg



Hot Tags: insulating round PTFE bar, suppliers, manufacturers, factory, wholesale, price, buy, cheap, bulk, quotation
