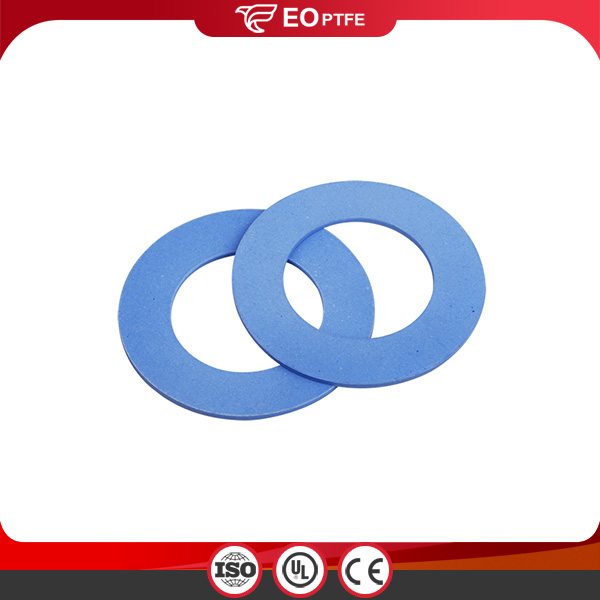

Glass Fiber Filled PTFE Gaskets

Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide....

Send Inquiry

Material	Virgin PTFE and filled with other materials. Specified materials are also ok
Color	Please check the "color show" as following
Method	Skiving and mould
Certification	ISO9001, ISO14001, FDA, Rosh
MOQ	According to the size and our stock
Sample	Free
Price	According to the specification, quantity and materials the more the cheaper.
Price
Package	Usually wooden case

Specification

Standard Gasket

ENSI (PN2.0) mm					EU Standard(PN1.6)					JIS (16K)					JIS(10K)
Nomi- nal Dia	OD	ID	T	N.W.	Nomi- nal Dia	OD	ID	T	N.W.	Nomi- nal Dia	OD	ID	T	N.W.	Nomi- nal Dia	OD	ID	T	N.W.
DN15	46.5	22	3	0.01	DN10	46	18	3	0.01	DN10	53	18	3	0.014	DN10	53	18	3	0.014
DN20	56	27	3	0.015	DN15	51	22	3	0.012	DN15	58	22	3	0.016	DN15	58	22	3	0.016
DN25	65.5	34	3	0.02	DN20	61	27	3	0.016	DN20	63	28	3	0.017	DN20	63	28	3	0.017
DN32	75	43	3	0.023	DN25	71	34	3	0.021	DN25	74	35	3	0.023	DN25	74	35	3	0.023
DN40	84.5	49	3	0.03	DN32	82	43	3	0.027	DN32	84	43	3	0.028	DN32	84	43	3	0.028
DN50	104.5	61	3	0.05	DN40	92	49	3	0.033	DN40	89	49	3	0.03	DN40	89	49	3	0.03
DN65	123.5	77	3	0.053	DN50	107	61	3	0.042	DN50	104	61	3	0.038	DN50	104	61	3	0.038
DN80	136.5	89	3	0.06	DN65	127	77	3	0.055	DN65	124	77	3	0.051	DN65	124	77	3	0.051
DN100	174.5	115	3	0.13	DN80	142	89	3	0.066	DN80	140	90	3	0.062	DN80	134	90	3	0.053
DN125	196	140	3	0.14	DN100	162	115	3	0.07	DN90	150	102	3	0.066	DN90	144	102	3	0.056
DN150	221.5	169	3	0.15	DN125	192	141	3	0.092	DN100	165	115	3	0.076	DN100	159	115	3	0.065
DN200	278.5	220	3	0.18	DN150	218	169	3	0.105	DN125	203	141	3	0.116	DN125	190	141	3	0.088
DN250	338	273	3	0.25	DN200	273	220	3	0.145	DN150	238	167	3	0.156	DN150	220	167	3	0.111
DN300	408	324	3	0.35	DN250	329	273	3	0.182	DN200	283	218	3	0.176	DN175	245	192	3	0.125
DN350	449	356	3	0.45	DN300	384	325	3	0.226	DN250	356	270	3	0.291	DN200	270	218	3	0.137
DN400	513	407	3	0.55	DN350	444	377	3	0.3	DN300	406	321	3	0.34	DN225	290	244	3	0.133
DN450	548	458	3	0.5	DN400	495	426	3	0.343	DN350	450	359	3	0.4	DN250	333	270	3	0.205
DN500	605	508	3	0.6	DN450	555	480	3	0.419	DN400	510	410	3	0.5	DN300	378	321	3	0.215
DN550	659	559	3	0.7	DN500	617	530	3	0.539	DN450	575	460	3	0.643	DN350	423	359	3	0.27
DN600	716.5	610	3	0.8	DN600	734	630	3	0.766	DN500	630	513	3	0.722	DN400	486	410	3	0.368
										DN550	684	564	3	0.809	DN450	541	460	3	0.438
										DN600	734	615	3	0.867	DN500	596	513	3	0.497
															DN550	650	564	3	0.564
															DN600	700	615	3	0.604

Custom specifications

Diamater	≤3000mm
Thickness	0.1-10mm

Product Features

Main features of pure PTFE sheet :

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Even if PTFE products have excellent properties, like high/low temperature resistance, chemcial resistance, weathering resistance, dielectric superiority and high lubricity, sometimes we still need to improve its hardness, wear resistance, creep resistance and dimensional stability.

Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Details of PTFE filled with other materials :

Filled materials	Common filled ratio ( Quantity %)	Main performances
Bronze	40, 60	Increases hardness and wear resistance; Increases dimensional stability and compressive strength;
Carbon	5, 10, 15	Increases compressive strength, hardness, wear, and load properties. Good chemical resistance;Improves electrical properties.
Graphite	5, 10, 15	Improves the deformation under load; Reduces initial wear; Improves thermal and eletrical conductivity
Glass Fiber	10, 15, 25	Increases compressive strength, rigidity and wear. Reduces creep and cold flow; Improve Dimensional Stability.
Carbon Fiber	10 , 15, 25	Increases compressive strength, hardness, wear, and load properties. Reduces creep and cold flow
POB (polyphenyl ester)	5, 10, 15	Improve the lubrication performance;Enhance the mechanical strength; Increase using temperature
BaSO4	5, 10, 15	Increases compressive strength, hardness and wear resistance Reduces creep
SiO2	5, 10, 15	Increases hardness and wear resistance; Improve Dimensional Stability.
Glass beads	5, 10, 15	Reduces creep and cold flow;Lower density Increases hardness and wear resistance;
Others materials	PEEK(polyetheretherketone), PI(Polyimide), MoS₂ are also ok
Remarks	Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us.

Item	Pure PTFE	60% Bronze	20% Glass Fiber	15% Glass Fiber 5% graphite	20% Carbon fiber	Unit
Density	2.18	3.9	2.26	2.22	2.01	g/m3
Tensile strength	276	127	175	158	189	MPa
Elongation at break	238	101	207	205	92	%
ROCKWELL Hardness	3.2	33.8	6.4	11.3	32.1	-
Friction coefficient	0.13	0.18-0.2	0.20-0.24	0.15-0.17	0.16-0.18	-
Bending strength	207	280	210	225	320	°C
