PTFE Mold Sheet for Virgin

PTFE Mold Sheet for Virgin

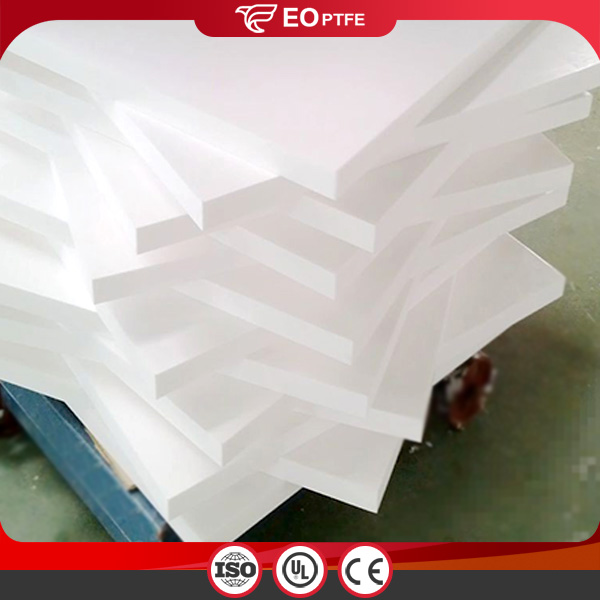

Product Name:Molded PTFE sheet
Sample: Free
Thickness: 0.03-100mm
Material: PTFE
Size: Accept customization
Payment Terms: L/C, T/T, PayPal, Western Union
...

Send Inquiry

Product Description

In fluoroplastics, Molded PTFE sheet got the most consumption and was used widely. It’s an important material in variety of fluoroplastics. PTFE resin is in a class of paraffinic polymers that have some or all of the hydrogen replaced by fluoride. PTFE exhibit astonishing chemical resistance. This self-lubricating material provides a low friction coefficient, and is ideally suited for the manufacture of corrosion-resistant gaskets & seals. One of the most chemically resistant materials available, PTFE also handles continuous service temperatures approaching 500F((280°C). It also has a high oxygen level

PTFE Mold Sheet for Virgin
.jpg

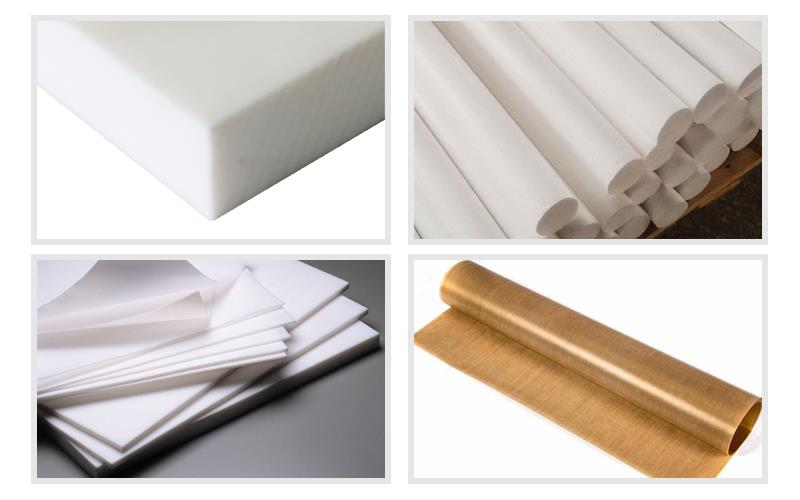

Applications of Molded PTFE sheet:

They can be processed into gasket, seals, lining partitions, scraper, rails, electrical insulation that can be used under various frequency and bridge bearing slide.

Material

Molded PTFE sheet

Color

Pure materials is White. Other color as order

Method

Skiving and mould

Certification

ISO9001, ISO14001, FDA, Rosh

MOQ

1kgs, specific szie according to stock

Sample

Free

Price

USD7-11/kgs according to the specification and quantity,
the more the cheaper.

Package

Usually wooden case

Others

Can filled with other materials to enhance performance

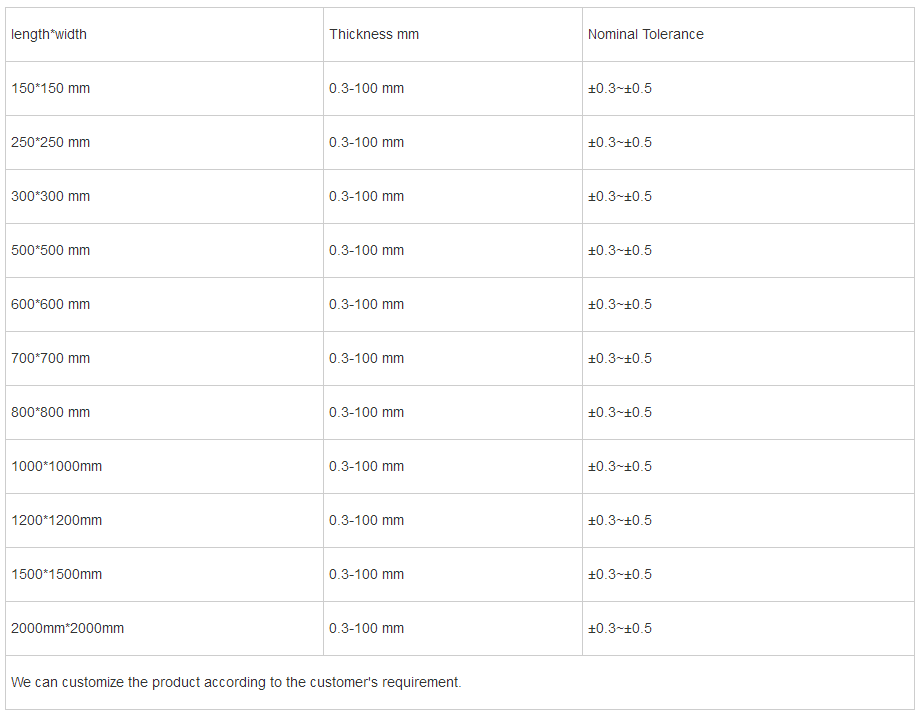

Product Specification

length*width

Thickness  mm

Nominal  Tolerance

150*150  mm

0.3-100  mm

±0.3~±0.5

250*250  mm

0.3-100  mm

±0.3~±0.5

300*300  mm

0.3-100  mm

±0.3~±0.5

500*500  mm

0.3-100  mm

±0.3~±0.5

600*600  mm

0.3-100  mm

±0.3~±0.5

700*700  mm

0.3-100  mm

±0.3~±0.5

800*800  mm

0.3-100  mm

±0.3~±0.5

1000*1000mm

0.3-100  mm

±0.3~±0.5

1200*1200mm

0.3-100  mm

±0.3~±0.5

1500*1500mm

0.3-100  mm

±0.3~±0.5

2000mm*2000mm

0.3-100  mm

±0.3~±0.5

We can customize the product according to the customer's requirement.

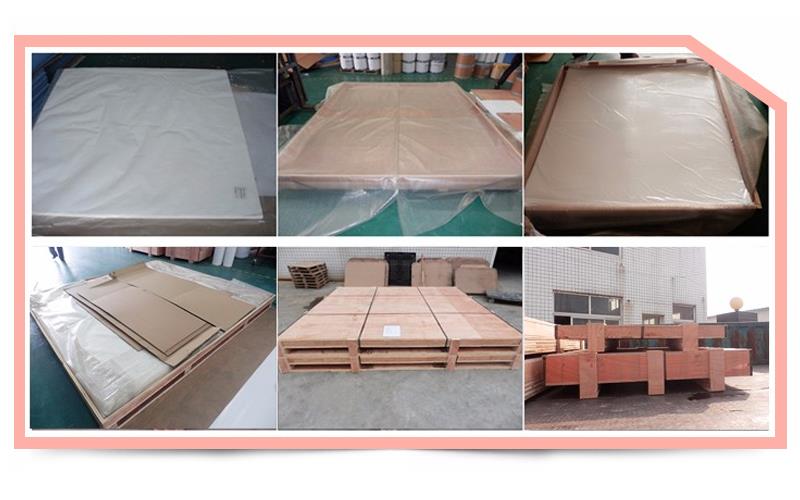

Product Packaging

Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

PTFE Mold Sheet for Virgin
.jpg

Company Profile

PTFE Mold Sheet for Virgin
.jpg
