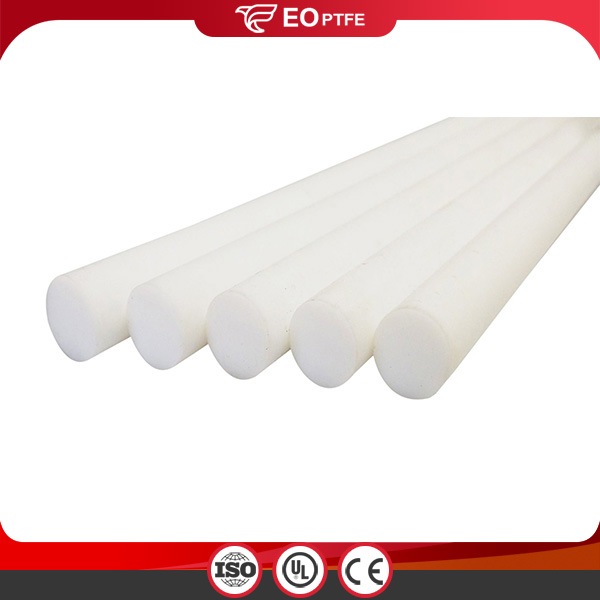

Extruded PTFE Bar

The PTFE extruded bar is a bar which is formed by dispersing a resin through a paste extrusion process. Mainly applicable to some long products and non-standard mechanical parts: seals / gaskets, rings, wear plates / seats, insulation parts, corrosion resistance industry, mechanical parts, lining, oil and gas, petrochemical industry , chemical industry, equipment and so on....

Send Inquiry

Material	Virgin PTFE. Specified materials are also ok
Color	Pure materials is White. Other color as order
Method	Extruded
Certification	ISO9001, ISO14001, FDA, Rosh
MOQ	1kgs, specific szie according to stock
Sample	Free
Price	according to the specification and quantity, the more the cheaper.
Price

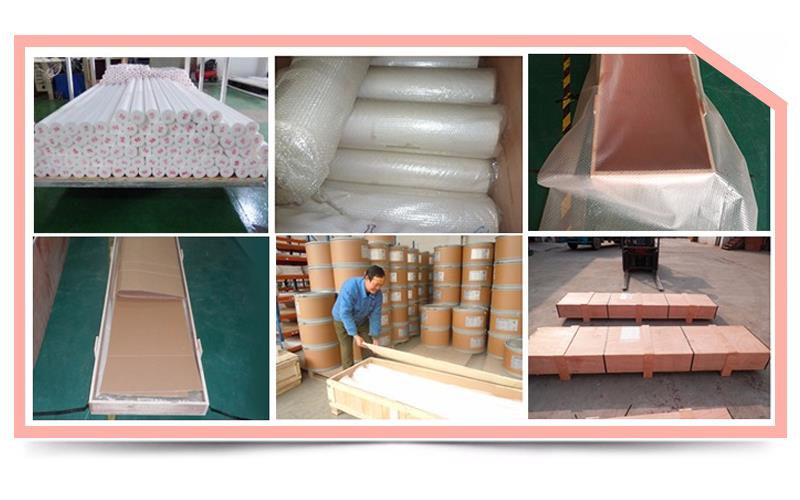

Package	Usually wooden case
Others	Can filled with other materials to enhance performance

Specification

The General Specification of PTFE Rod

OD(mm)	Length(mm)	Length(mm)
1, 2, 3, 4	continuous length
5, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 28, 30, 32, 35, 40	1000	2000
45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100	1000	2000
110, 120, 130, 140, 150, 160, 170, 180, 190, 200	1000	2000

Custom specifications of PFFE Rod

Item	Dia.(mm)	Length(mm)
Paste Extruded Rod	1~4	According to customer's request
Plug Extruded Rod	4~200	500~2000

Product Features

Main features of PTFE rod:

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Properties of pure PFFE Rod

Item	ASTM	Data	Unit
Mechanical Properties
Density	D792	2.1~ 2.2	g/m3
Tensile strength	D638	≥25 about 25 ~ 45	MPa
Elongation at break	D638	≥150 about 200~ 350	%
Compression strength	D695	24	MPa
ShoreD Hardness	D636	50-60	-
Friction coefficient	on steel	0.01	-
Thermal Properties
Working Temp		-180 ~ 260	°C
Melting point		330	°C
Produce Max. Temp		390	°C
Fire Resistance	UL94	V-0
Brittle point temperature		-268	°C
Electrical properties
Dielectric strength	D149	>1400	kV/mm
Volume resistivity	D257	>10¹⁸	Ω·cm
Surface Resistivity	D257	>10¹⁶	Ω
Dielectric constant	D150	2.1
Conventional properties
Chemical solvent resistance	Excellent
Water absorption (25℃ )	D570	0.01	24h/%
limit oxygen index	D2963	>95

Depending on the nature of the PTFE, the filled PTFE plunger extrusion bar is used in many applications. Many connectors are also made of filler PTFE plunger extrusion bars, mainly using its special properties such as corrosion resistance, high temperature resistance and low temperature resistance. Then there are the main parts of heat exchangers, valves and pumps, porous copper impregnated fluoroplastic metal bearings, which can be used under high temperature and high pressure dry friction and vacuum conditions.

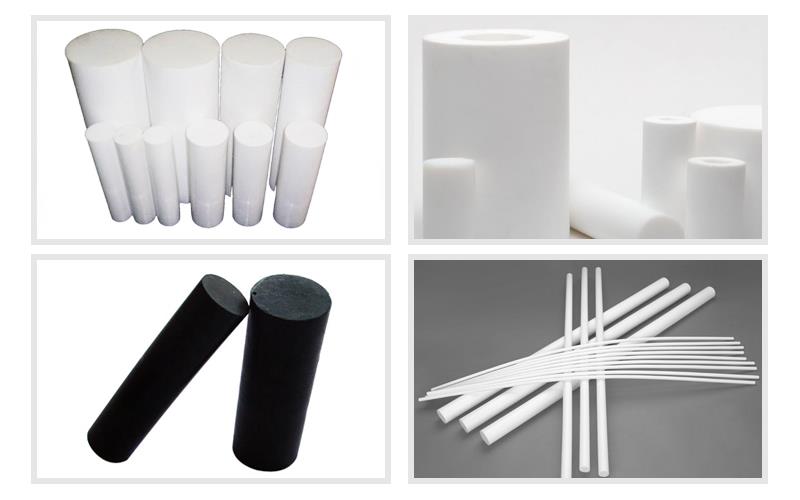

Product Show

Extruded PTFE bar .jpg
