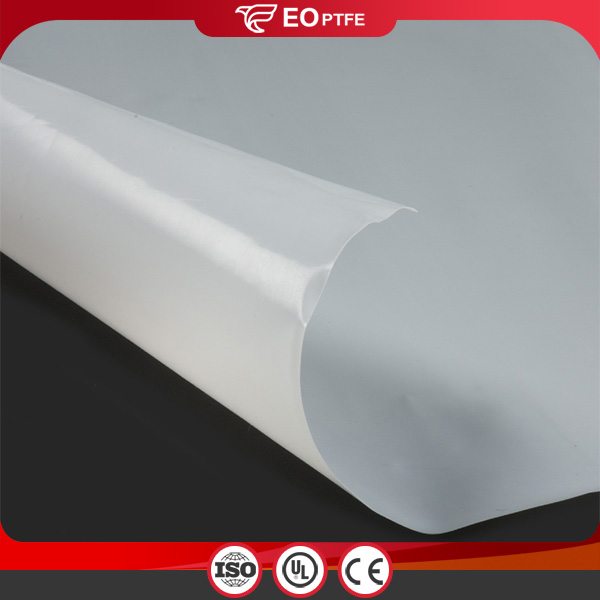

The PTFE film is molded, sintered, cooled into a blank by a suspension polytetrafluoroethylene resin, and then subjected to turning and calendering. The turned film is a non-oriented film, and the non-oriented film is calendered to form an oriented film. Polytetrafluoroethylene film is an ideal application material for electronic fields such as microwave circuit boards because of its excellent purity and uniform thickness. Its dielectric constant is different from other solid materials in the case of large changes in temperature and frequency....
Send InquiryProduct Description
Property | Unit | High-density | Common |
Tensile strength | MPa | ≥30 | ≥10 |
Elongation at rupture | % | ≥30 | ≥100 |
1MHz dielectric loss tangent |
| 2.5×10-4 | -- |
1MHz dielectric constant |
| average 1.8-2.2 | -- |
Dc breakdown voltage (Normal temperature) | KV/M | average 200 | average 30 |
lowest 40 |
PTFE film has been the latest scraping technology has been a wide range of investment, so that we can provide customers with high quality, low price products.

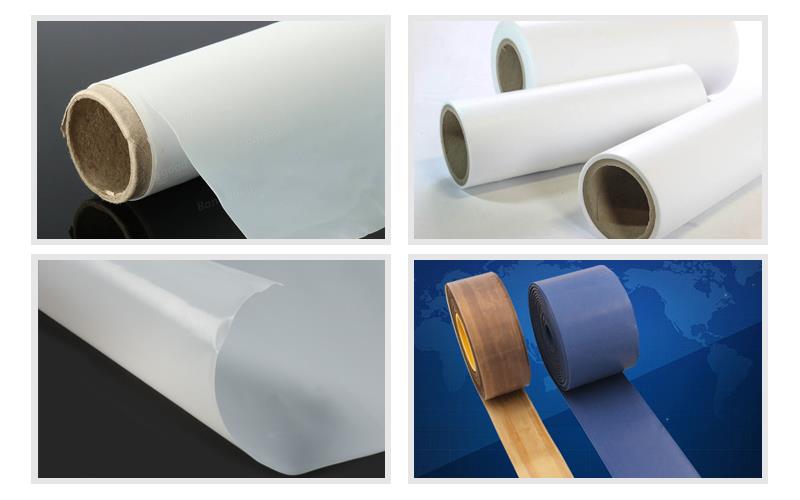

Ultra-thin PTFE turning tape and film has excellent dielectric properties, anti-aging and Anti-Corrosion properties, has been widely used in electronics, semiconductors and other industries. It is divided into directional film, semi directional film and non directional film. Ultra thin PTFE turning tape and film can be in wide width, thickness and color. In particular, Senrong's new investment in high-precision film Scrapers will make it possible to produce ultra-thin films or sheets, and consistently reach the most stringent tolerances of 05 mm, enabling us to meet these demanding customer requirements. Global.
Item | Thickness(mm) | Thickness | Width(mm) | Item | Thickness(mm) | Thickness | Width(mm) |
High-density | 0.015 | 0~+0.01 | 10-120 | Common | 0.03 | 0~+10% | 30-1500 |
0.02 | 0.05 | ||||||
0.03 | 0.08 | ||||||
0.04 | 0.10 | ||||||
0.05 | 0.15 | ||||||
0.07 | 0.20 | ||||||
0.08 | 0.25 | ||||||
0.90 | 0.30 | ||||||
0.10 | 0.40 | ||||||
0.15 | 0.50 |
Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.
Please send us your requirement by email.
