The rotary seal is a type of dynamic seal consisting of a slip ring made of Teflon and a rubber O-ring that provides elasticity to seal the rod, shaft, pin, and rotation that rotate or oscillate. In joints and other places, there are rotary hydraulic rotations in various industrial fields such as construction machinery, construction machinery and automobile equipment. It is a two-way rotating seal that can withstand pressure on both sides or alternating pressure....
Send InquiryThe spring seal/spring energized seal/varieseal is a high-performance seal that contains special springs in the U-type Teflon. The appropriate spring force is added to the system fluid pressure to push out the sealing lip (face). Gently press against the sealed metal surface to create a very good seal. The actuating effect of the spring can overcome the slight decentering of the metal mating surface as well as the wear of the sealing lip, while continuing to maintain the desired sealing performance.

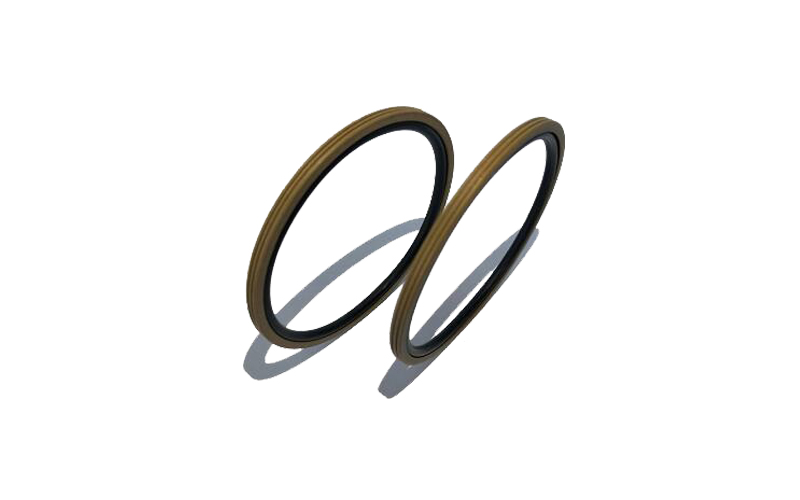

PTFE spring energized rotating JTVM seal is used for rotating, reciprocating and static sealing occasions, no creeping operation, precise control and good scraping effect.
Name | PTFE spring energized rotating seal |
Sliding speed[m/s] | 15 |
Temperature [° C] | -55...+260 |
Pressure Pr:N/mm² | 45（max） |
Medium | Virtually all fluids, chemicals and gases |
Material | Virgin PTFE, PTFE+carbon, PTFE+glass fiber, PTFE+bronze, PTFE+polyester, PEEK etc. Other special material is also available. |
Color | coffee, white, black, blue, beige |
Type of spring | V-spring, Helical Spring, Slanted Coil Spring |
Size | Supply standard and non-standard size |
Advantages | 1) It can be used for reciprocating and rotating motions; (2) Can adapt to most fluids and chemical products; (3)Low friction coefficient, wear resistance, dimensional stability; (4) It will not crawl when it is controlled accurately; (5) Strong anti-corrosion ability and good dimensional stability; (6)Can withstand the rapid temperature changes of the environment; (7)Liquids that will not contaminate foods, drugs, and pharmaceuticals; (8) It can be disinfected and its storage period is unlimited. |
Application | Valves Pumps Separators Actuators Dosing devices |
Supply ability | 1,000,000 pcs/month |
Certificates | ISO9001-2008, SGS |
Delivery time | 5 to 7 working days, 2 days for in stock |
MOQ | 20 |
(1)Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.
(2)PTFE surface treated should be kept in dark place, can not be damage.
Please send us your requirement by email.
