Molding PTFE Rod

Molding PTFE Rod

Product Name:Molding PTFE rod
Sample: Free
Method: Extruded or mould
Materials: PTFE
Size: Accept customization
Payment Terms: L/C, T/T, PayPal, Western Union...

Send Inquiry

Product Description

Molding PTFE rod is the mostly consumed category of florin plastics, Which has the lowest coefficient of friction in all the engineering plastics, Whose long-term working temperature can reach 200 to 260℃. Guangzhou Engineering Plastics Industries (Group) Company has studied and applied this material in many industries for many years. And we know thatthe PTFE Teflon material has the following main characteristics: the excellent chemical corrosion-resistance, which is able to endure All kind of chemistry material. And it has rather good electricity-resistance, which is not affected by the temperature and is called“ Kind of plastics”. PTFE plastic has excellent corrosion-resistance, aging-resistance, high(low) temperature resistance, good lubrication and insulation, non-adhesiveness, toxicological harmless. It is widely used in industries like aviation, chemical industry, electric and electronics, bridge, mechanical manufacturing, textile, paper making, ceramics etc.

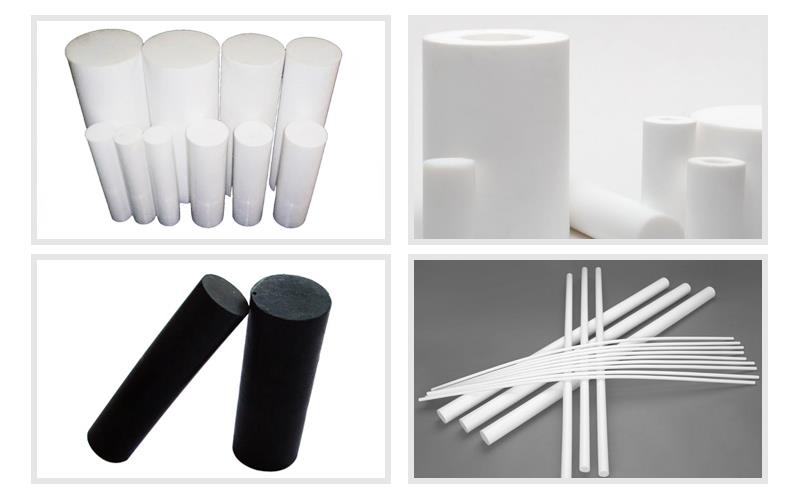

Molding PTFE rod
.jpg

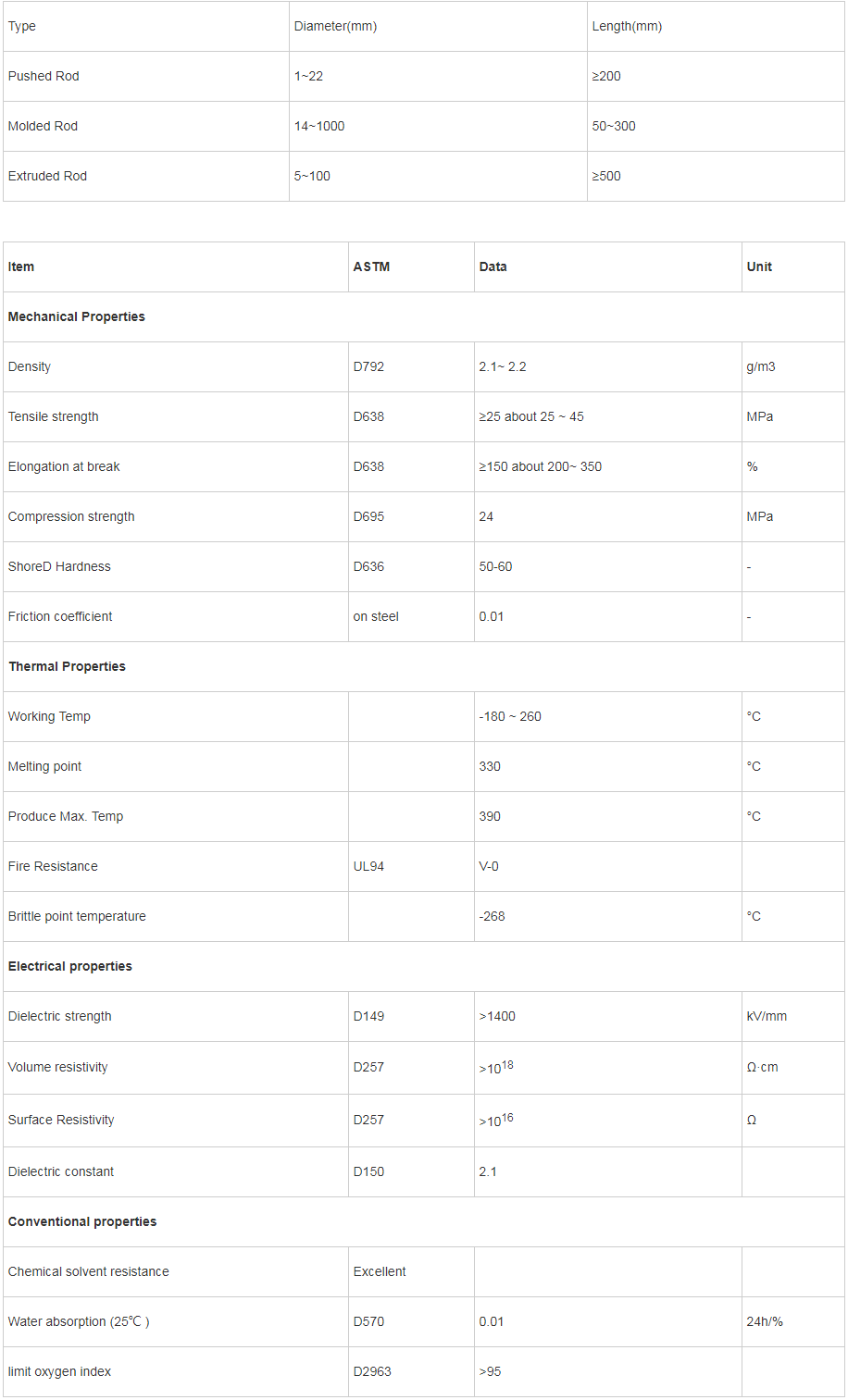

Product Specification

NOTE:We can offer other sizes of rods according to clients' requirement.

Type

Diameter(mm)

Length(mm)

Pushed Rod

1~22

≥200

Molded Rod

14~1000

50~300

Extruded Rod

5~100

≥500


Item

ASTM

Data

Unit

Mechanical Properties

Density

D792

2.1~ 2.2

g/m3

Tensile strength

D638

≥25 about 25 ~ 45

MPa

Elongation at break

D638

≥150 about 200~ 350

%

Compression strength

D695

24

MPa

ShoreD Hardness

D636

50-60

-

Friction coefficient

on steel

0.01

-

Thermal Properties

Working Temp

-180 ~ 260

°C

Melting point

330

°C

Produce Max. Temp

390

°C

Fire Resistance

UL94

V-0

Brittle point temperature

-268

°C

Electrical properties

Dielectric strength

D149

>1400

kV/mm

Volume resistivity

D257

>1018

Ω·cm

Surface Resistivity

D257

>1016

Ω

Dielectric constant

D150

2.1

Conventional properties

Chemical solvent resistance

Excellent

Water absorption (25℃ )

D570

0.01

24h/%

limit oxygen index

D2963

>95

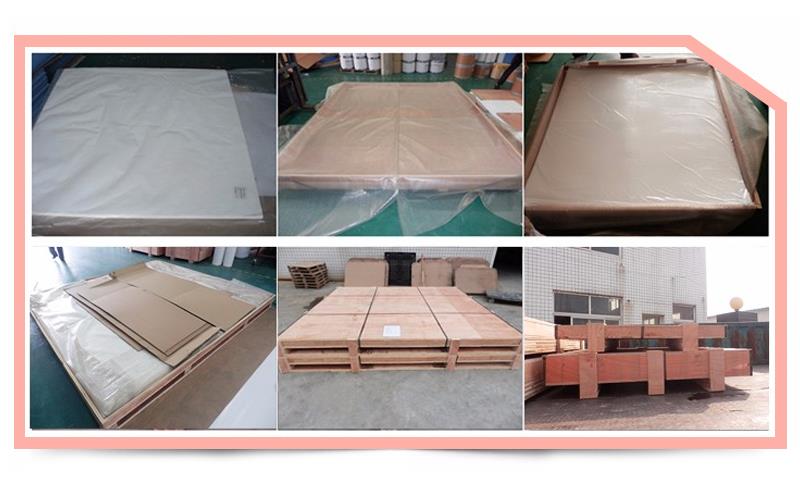

Product Packaging

Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

Molding PTFE rod
.jpg

Company Profile

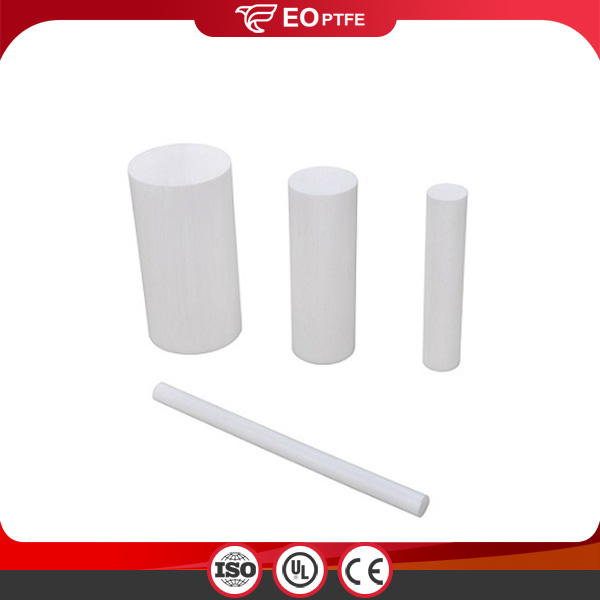

Molding PTFE rod
.jpg



Hot Tags: molding PTFE rod, suppliers, manufacturers, factory, wholesale, price, buy, cheap, bulk, quotation
