Spring Energized PTU Seal

Spring Energized PTU Seal

Name:Spring Energized PTU Seal
Sample: Free
Code: PTU
Material: seals: bronze, glass fiber, carbon, graphite, polyester etc. filled PTFE spring:
stainless steel
Size:Customized
Payment Terms: L/C, T/T, PayPal, Western Union
...

Send Inquiry

Product Description

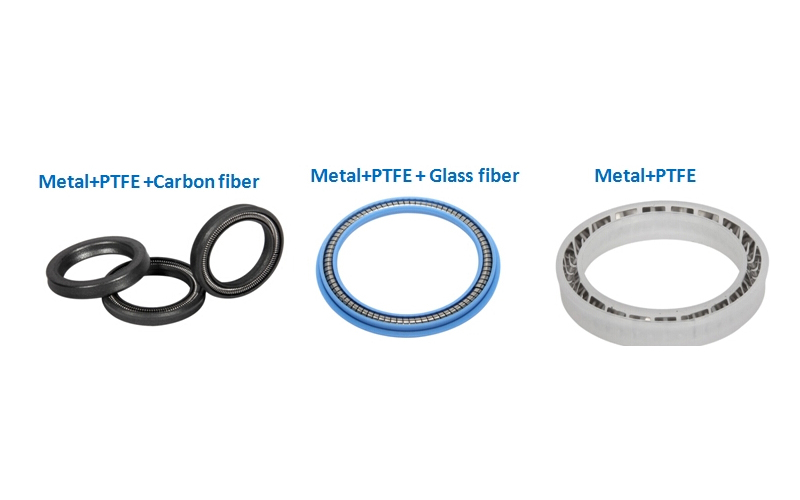

Spring Energized PTU Seal is a single acting seal, consisting of a U-shaped sealed jacket and a V-shaped corrosion-resistant spring.

The feature of it is through the combination of different sealing materials and springs, different sealing capabilities can be demonstrated to suit various application requirements. The CNC machine is used to manufacture the machine, without the cost of the mold. It is especially suitable for a small number of various seals.Spring Energized Seal PTU is symmetric seal and used for standard heel groove.

Spring Energized PTU Seal
.jpg

Sliding speed[m/s]

15

Temperature [° C]

-55...+260

Pressure Pr:N/mm²

45(max)

Application

Virtually all fluids, chemicals and gases

Material

PTFE+stainless steel

Certificates

ISO9001-2008, SGS

Delivery time

5 to 7 working days, 2 days for in stock

MOQ

20

Supply ability

1,000,000 pcs/month

Export market

South Asia,Southeast Asia,South America,North   America,Africa,Middle East,Australia


Installation Dimension table based on Metric Size

D   f8

D   h9

L+0.2

h

R1≤

3-8

d+2.9

2.4

2.3

0.2

10-18

d+4.5

3.8

3.4

0.2

20-36

d+6.2

4.6

4.5

0.4

40-115

d+9.4

7.1

6.8

0.4

120-400

d+12.2

9.5

9.2

0.4


Packing & Storage

Plastic bag or as your requirement

Spring Energized PTU Seal
.jpg


Company Profile

Spring Energized PTU Seal
.jpg
