Modified Filled PTFE Films

Modified Filled PTFE Films

Prodcut Name: Modified filled PTFE Films
Sample: Free
Size: Accept customization
Thickness: Wall thickness:0.1~500mm
Payment Terms: L/C, T/T, PayPal, Western Union

Send Inquiry

Product Description

1.Iinsulation electronic grade


3.Low absorption of water

4.Coefficient of friction

5.Excellent lubricity


7.Electrical insulation properties

8.Excellent flame retardancy

9.Excellent mechanical properties


11.Resistance high, low temperature properties

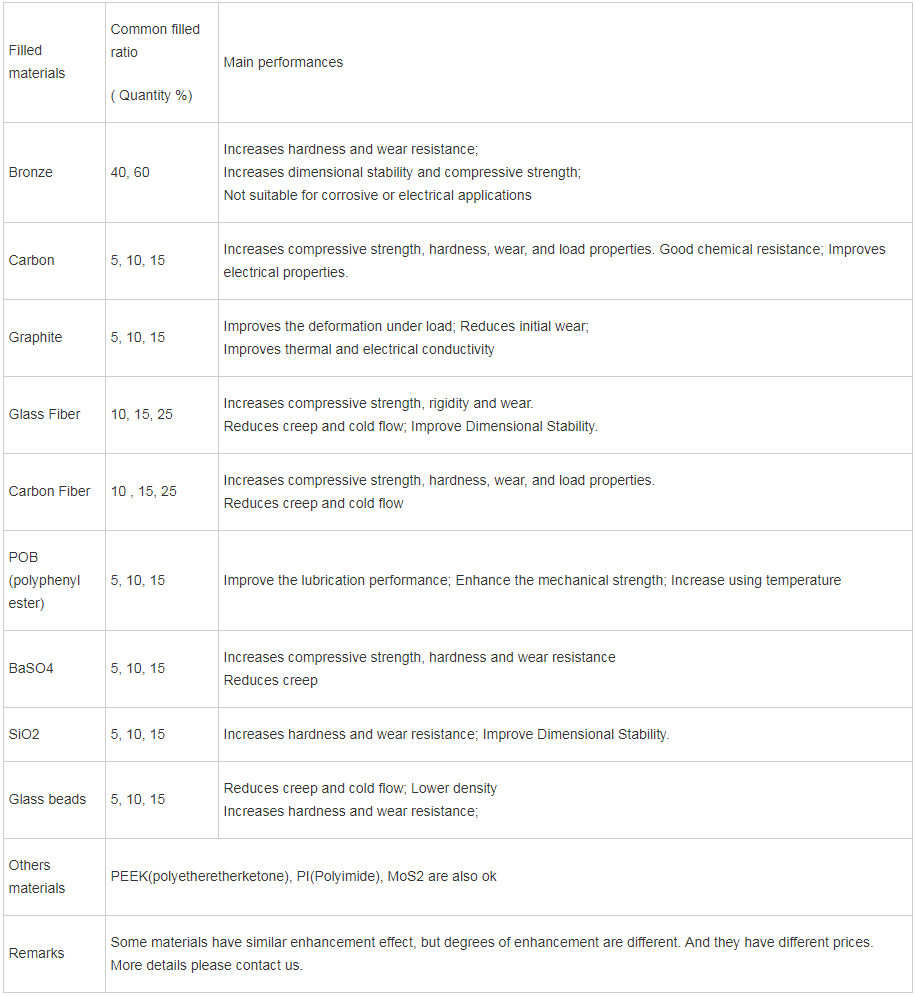

Product Specification

Filled materials

Common filled ratio

( Quantity %)

Main performances


40, 60

Increases hardness and wear resistance;
Increases dimensional stability and compressive strength;
Not suitable for corrosive or electrical applications


5, 10, 15

Increases compressive strength, hardness, wear, and load properties. Good chemical resistance; Improves electrical properties.


5, 10, 15

Improves the deformation under load; Reduces initial wear;
Improves thermal and electrical conductivity

Glass Fiber

10, 15, 25

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow; Improve Dimensional Stability.

Carbon Fiber

10 , 15, 25

Increases compressive strength, hardness, wear, and load properties.
Reduces creep and cold flow

(polyphenyl ester)

5, 10, 15

Improve the lubrication performance; Enhance the mechanical strength; Increase using temperature


5, 10, 15

Increases compressive strength, hardness and wear resistance
Reduces creep


5, 10, 15

Increases hardness and wear resistance; Improve Dimensional Stability.

Glass beads

5, 10, 15

Reduces creep and cold flow; Lower density
Increases hardness and wear resistance;

Others materials

PEEK(polyetheretherketone), PI(Polyimide), MoS2 are also ok


Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us.

Our Service

1: Any inquires will be replied within 24hours

2: Professional Manufacturer, welcome to visit to our website

3: High quality,fashion designs,reasonable&competitive price,fast delivery time

4: Sample order instock, and 3~7days for bulk production

Product Packaging

(1)Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

(2)PTFE surface treated should be kept in dark place, can not be damaged.

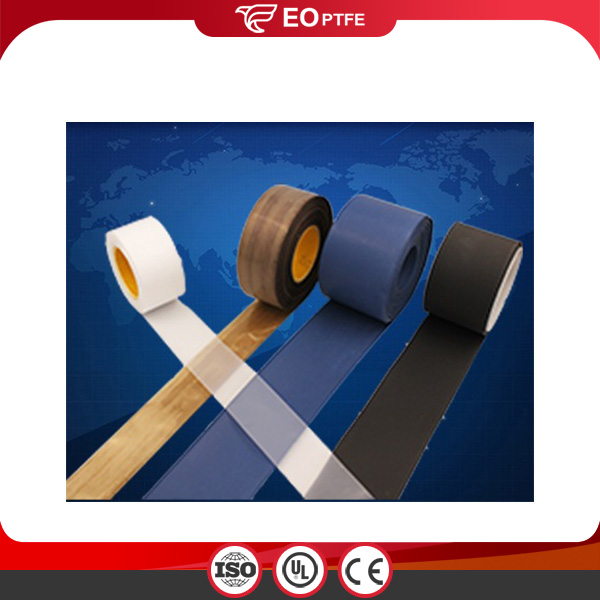

Modified filled PTFE Films
