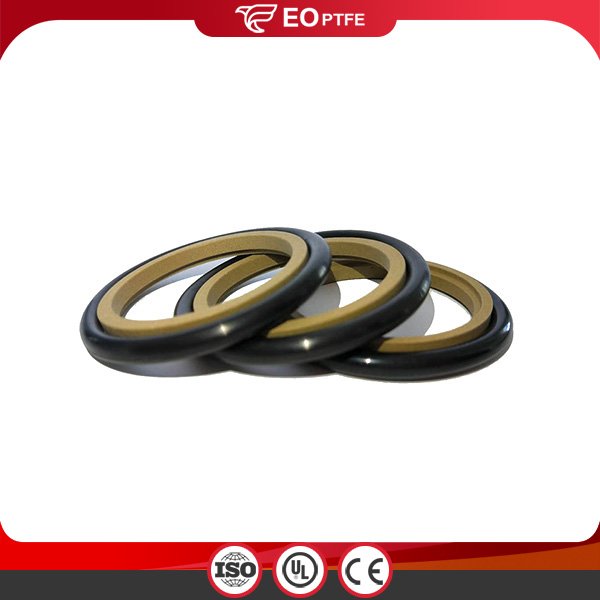

High Pressure Hydraulic Rod GSJ Seal is the most critical seal on any type of fluid power equipment preventing leakage of fluid from within the cylinder to the outside. Leakage through the rod seal can reduce equipment performance, and also in extreme cases can cause environmental issues....
Send InquiryThe rod seal is the most critical seal on any type of fluid power equipment preventing leakage of fluid from within the cylinder to the outside. Leakage through the rod seal can reduce equipment performance, and also in extreme cases can cause environmental issues.
|
Working pressure |
≤40Mpa |
|
Working temperature |
-30°~+110℃ |
| -25°~+220℃ | |
| (Depend on material of O-ring) | |
|
Working speed |
≤4m/s |
|
Working medium |
Hydraulic oil, water, etc |
|
Material |
NBR,PTFE,PTFE+bronze |
|
type |
technical data |
application |
material |
|
GSJ |
temp.range °C:-45/+200, speed≤m/s:15, pressure≤Mpa:60 |
moblile haydraulics,standard cylinders,manchine tools,injection moulding machines,presses.machine tools, |
NBR/PTFE/FKM |
|
GSI |
temp.range °C:-45/+200, speed≤m/s:15, pressure≤Mpa:60 |
special cylinders,manchine tools,presses.pumps and vales,robotics,servo equipment. |
NBR/PTFE/FKM |
|
RDDR |
temp.range °C:-45/+200, speed≤m/s:15, pressure≤Mpa:35 |
vale stem,machine tools,mini hydraulic |
NBR/PTFE/FKM |
|
GSW |
temp.range °C:-30/+200, speed≤m/s:15, pressure≤Mpa:60 |
moblilehaydraulics,standard cylinders,manchine tools,injection moulding machines,presses.machine tools,. |
NBR/PTFE/FKM |
|
GSR |
temp.range °C:-30/+200, speed≤m/s:1, pressure≤Mpa:60 |
special cylinders,manchine tools,presses.pumps and vales,robotics,servo equipment. |
NBR/PTFE/FKM |
|
GTDI |
temp.range °C:-35/+100, speed≤m/s:15, pressure≤Mpa:45 |
hydraulic cylinders requiring high static and dynamic sealing efficiency with low friction. |
NBR/PTFE/FKM /PU |
|
GGDI |
temp.range °C:-35/+200, speed≤m/s:0.5, pressure≤Mpa:45 |
moblilehaydraulics,heavy dutycylinders,press.machine tools. |
NBR/PTFE/FKM /POM |
|
OMSS |
temp.range °C:-30/+100, speed≤m/s:5, pressure≤Mpa:40 |
moblilehaydraulics,heavy dutycylinders,press.machine tools. |
NBR/PTFE/FKM /PU |
|
Yxd |
temp.range °C:-35/+120, speed≤m/s:1, pressure≤Mpa:40 |
moblile haydraulics,standard cylinders,manchine tools,injection moulding machines,presses.machine tools, |
NBR/FKM/PU |
|
RY |
temp.range °C:-30/+80, speed≤m/s:0.5, pressure≤Mpa:40 |
moblile haydraulics,standard cylinders,manchine tools,injection moulding machines,presses.machine tools, |
NBR/FKM/PU |
|
RYZ |
temp.range °C:-30/+80, speed≤m/s:0.5, pressure≤Mpa:40 |
moblile haydraulics,standard cylinders,manchine tools,injection moulding machines,presses.machine tools, |
NBR/PTFE/FKM /PU/POM |
|
RYF |
temp.range °C:-30/+80, speed≤m/s:0.5, pressure≤Mpa:50 |
moblilehaydraulics , heavy duty cylinders, industrial hydraulic. |
PU/POM |
|
RYA |
temp.range °C:-30/+80, speed≤m/s:0.5, pressure≤Mpa:40 |
moblilehaydraulics , industrial hydraulic.telescopic cylinder. |
pu |
|
RYJ |
temp.range °C:-30/+80, speed≤m/s:0.5, pressure≤Mpa:40 |
moblilehaydraulics , industrial hydraulic.telescopic cylinder. |
PU |
|
RYB |
temp.range °C:-30/+80, speed≤m/s:0.5, pressure≤Mpa:50 |
moblilehaydraulics , industrial hydraulic.telescopic cylinder. |
PU/POM |
|
RYL |
temp.range °C:-30/+80, speed≤m/s:0.5, pressure≤Mpa:40 |
hydraulic cylinders, Tail lift cylinders,steering cylinder. |
PU |
|
RYS |
temp.range °C:-30/+80, speed≤m/s:0.5, pressure≤Mpa:25 |
hydraulic cylinders, mobile hydraulics,industrial hydraulic. |
PU/NBR |
(1)Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.
(2)PTFE surface treated should be kept in dark place, can not be damaged.
Please send us your requirement by email.
