Molded PTFE Tubes

Molded PTFE Tubes

Product Name: Graphite carbon fiber PTFE Board
Sample: Free
Method: Extruded or mould
Materials: PTFE
Size: Accept customization
Payment Terms: L/C, T/T, PayPal, Western Union
...

Send Inquiry

Product Description

1. PTFE is made by polymerization of tetrafluoroethylene polymer,which has excellent chemical stability, corrosion-resistance, sealing, self-lubrication,non-stick, electrical insulation and good anti-aging endurance, excellent high and low temperature capability .

2. As engineering plastics can be made of PTFE tube, rod, strip, sheet, film and so on.

3. Generally used in high required performances of corrosion-resistant pipes, containers, pumps, valves and system radar, high frequency communications equipment, radio equipment.

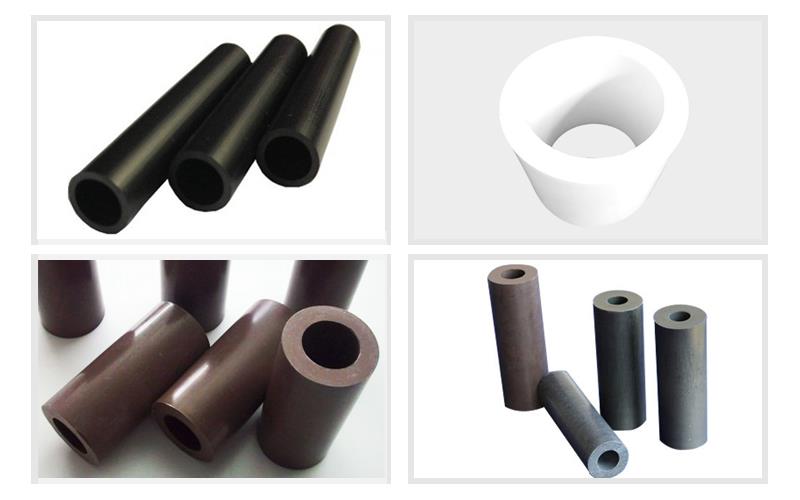

Molded PTFE Tubes.jpg

Product Specification

Product

OD(mm)

Wall Thickness(mm)

Length(mm)

Paste Extruded Tube

0.5~25

0.1~2.5

According to customer's request

Plug Extruded Tube

25~250

1.5~8

According to customer's request

Molded Tube

25~2000

5~500

100~300

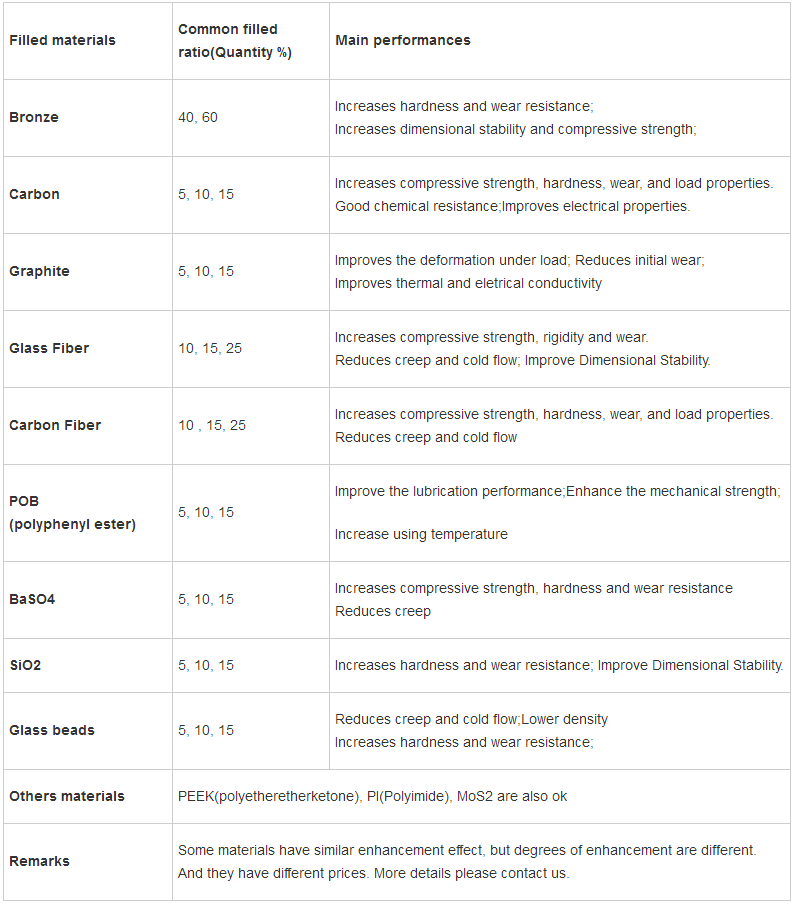

Details of PTFE filled with other materials

Filled materials

Common filled ratio

( Quantity %)

Main performances

Bronze

40, 60

Increases hardness and wear resistance;
Increases dimensional stability and compressive strength;

Carbon

5, 10, 15

Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance;Improves electrical properties.

Graphite

5, 10, 15

Improves the deformation under load; Reduces initial wear;
Improves thermal and eletrical conductivity

Glass Fiber

10, 15, 25

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow; Improve Dimensional Stability.

Carbon Fiber

10 , 15, 25

Increases compressive strength, hardness, wear, and load properties.
Reduces creep and cold flow

POB
(polyphenyl ester)

5, 10, 15

Improve the lubrication performance;Enhance the mechanical strength;

Increase using temperature

BaSO4

5, 10, 15

Increases compressive strength, hardness and wear resistance
Reduces creep

SiO2

5, 10, 15

Increases hardness and wear resistance; Improve Dimensional Stability.

Glass beads

5, 10, 15

Reduces creep and cold flow;Lower density
Increases hardness and wear resistance;

Others materials

PEEK(polyetheretherketone), PI(Polyimide), MoS2 are also ok

Remarks

Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us.


Product Packaging

Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

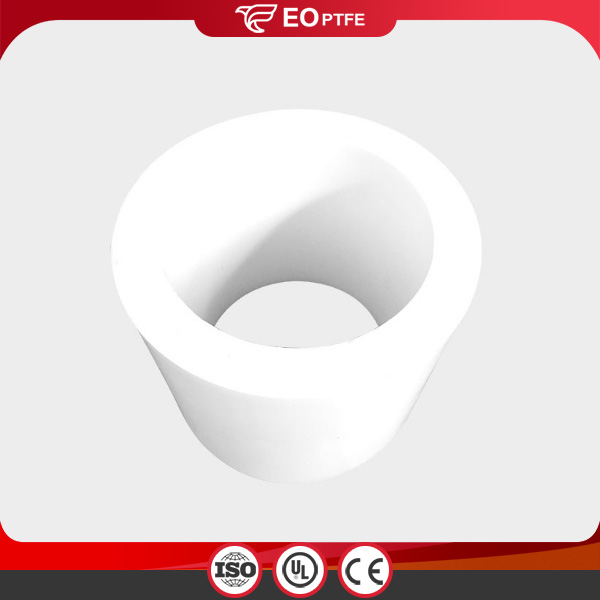

Molded PTFE Tubes
.jpg

Company Profile

Molded PTFE Tubes
.jpg
