PTFE Graphite Carbon Fiber Plates

PTFE filled with graphite and carbon fiber can make its size concealed, thermal conductivity is improved, softening form is stable, compressive strength and hardness ratio are good wear-resistant materials....

Send Inquiry

Product Description

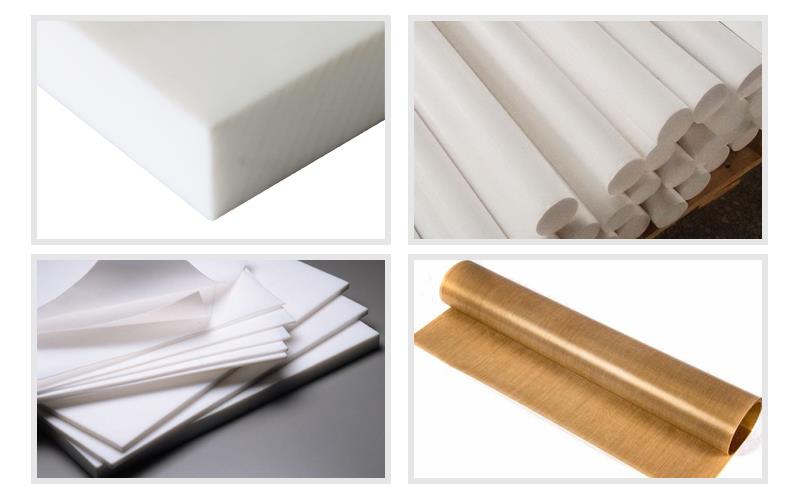

PTFE skived Sheet is manufactured by technique of compacting, sintering, rotary cutting with PTFE granular resin. It has good dielectric performance and non-aging, best anti chemistry corrosion ability and wide applying intension range.

PTFE molded sheet is manufactured by molding process with PTFE regular resin and sintering. It is very suitable for seals, lining, diaphragm, spacer guide and bearing pad for bridge.

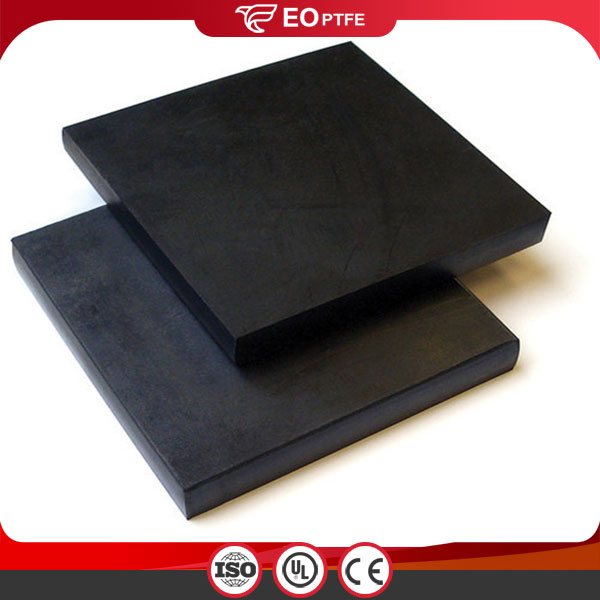

PTFE Graphite Carbon Fiber Plates

Product Specification

length*width	Thickness mm	Nominal Tolerance
150*150 mm	0.3-100 mm	±0.3~±0.5
250*250 mm	0.3-100 mm	±0.3~±0.5
300*300 mm	0.3-100 mm	±0.3~±0.5
500*500 mm	0.3-100 mm	±0.3~±0.5
600*600 mm	0.3-100 mm	±0.3~±0.5
700*700 mm	0.3-100 mm	±0.3~±0.5
800*800 mm	0.3-100 mm	±0.3~±0.5
1000*1000mm	0.3-100 mm	±0.3~±0.5
1200*1200mm	0.3-100 mm	±0.3~±0.5
1500*1500mm	0.3-100 mm	±0.3~±0.5
2000mm*2000mm	0.3-100 mm	±0.3~±0.5
We can customize the product according to the customer's requirement.

Details of PTFE filled with other materials

Filled materials	Common filled ration (Quantity %)	Main performances
Bronze	40, 60	Increases hardness and wear resistance; Increases dimensional stability and compressive strength;
Carbon	5, 10, 15	Increases compressive strength, hardness, wear, and load properties. Good chemical resistance;Improves electrical properties.
Graphite	5, 10, 15	Improves the deformation under load; Reduces initial wear; Improves thermal and eletrical conductivity
Glass Fiber	10, 15, 25	Increases compressive strength, rigidity and wear. Reduces creep and cold flow; Improve Dimensional Stability.
Carbon Fiber	10 , 15, 25	Increases compressive strength, hardness, wear, and load properties. Reduces creep and cold flow
POB (polyphenyl ester)	5, 10, 15	Improve the lubrication performance;Enhance the mechanical strength; Increase using temperature
BaSO4	5, 10, 15	Increases compressive strength, hardness and wear resistance Reduces creep
SiO2	5, 10, 15	Increases hardness and wear resistance; Improve Dimensional Stability.
Glass beads	5, 10, 15	Reduces creep and cold flow;Lower density Increases hardness and wear resistance;
Others materials	PEEK(polyetheretherketone), PI(Polyimide), MoS2 are also ok
Remarks	Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us.
