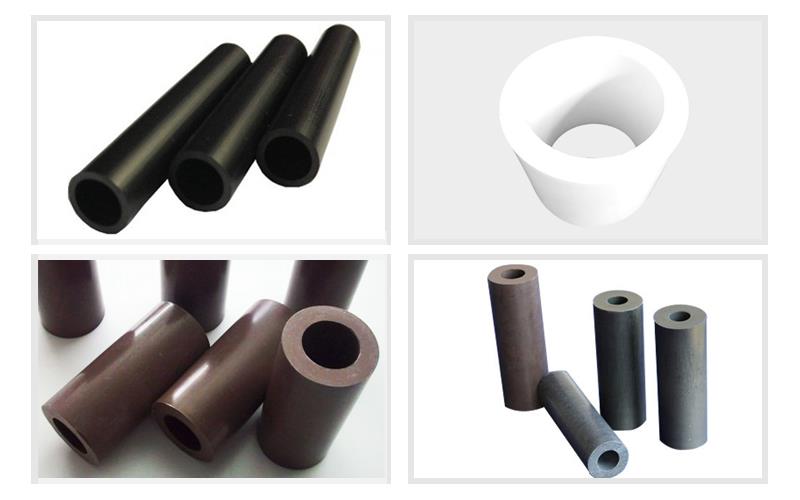

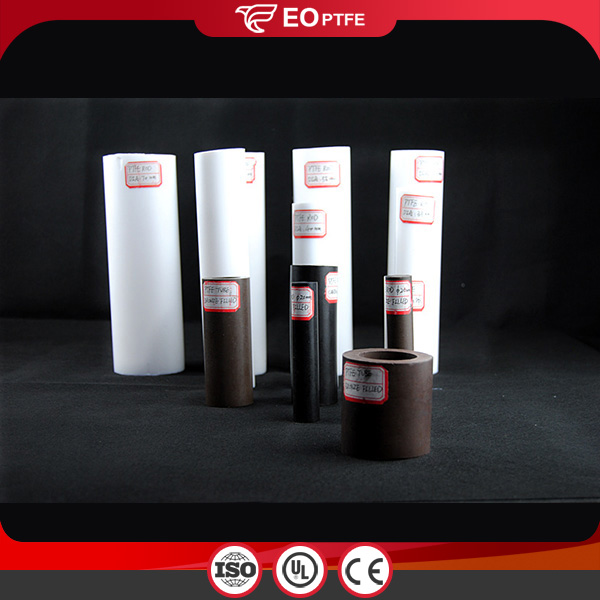

Insulating Sheath Filled Carbon PTFE Tubes

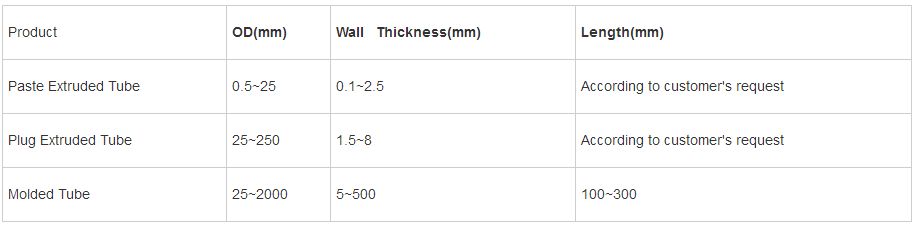

Paste Extruded Tube

0.5~25

0.1~2.5

According to customer's request

Plug Extruded Tube

25~250

1.5~8

According to customer's request

Molded Tube

25~2000

5~500

100~300

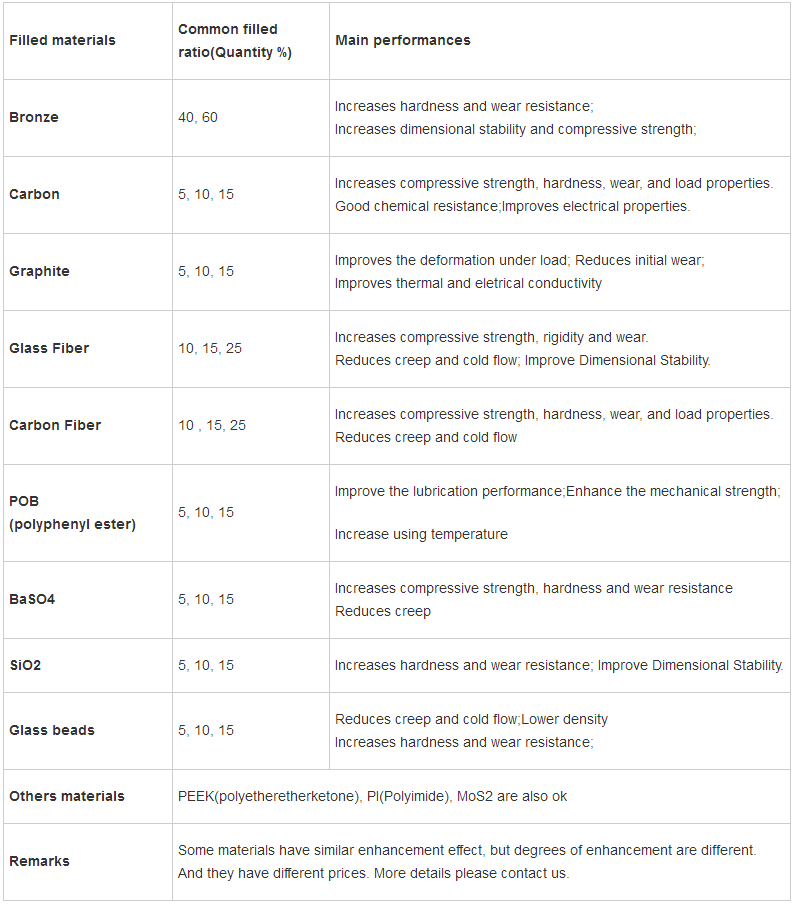

Bronze

40, 60

Increases hardness and wear resistance;
Increases dimensional stability and compressive strength;

Carbon

5, 10, 15

Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance;Improves electrical properties.

Graphite

5, 10, 15

Improves the deformation under load; Reduces initial wear;
Improves thermal and eletrical conductivity

Glass Fiber

10, 15, 25

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow; Improve Dimensional Stability.

Carbon Fiber

10 , 15, 25

Increases compressive strength, hardness, wear, and load properties.
Reduces creep and cold flow

POB
(polyphenyl ester)

5, 10, 15

Improve the lubrication performance;Enhance the mechanical strength;

Increase using temperature

BaSO4

5, 10, 15

Increases compressive strength, hardness and wear resistance
Reduces creep

SiO2

5, 10, 15

Increases hardness and wear resistance; Improve Dimensional Stability.

Glass beads

5, 10, 15

Reduces creep and cold flow;Lower density
Increases hardness and wear resistance;

Others materials

PEEK(polyetheretherketone), PI(Polyimide), MoS2 are also ok

Remarks

Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us.
