Filled Bronze Plastic PTFE Tubes

Filled Bronze Plastic PTFE Tubes

Product Name:Filled Bronze plastic Ptfe Tubes
Sample: Free
Method: Extruded or mould
Materials: PTFE
Size: Accept customization
Payment Terms: L/C, T/T, PayPal, Western Union...

Send Inquiry

Product Description

PTFE can be formed by compression or extrusion processing, and can also be made into aqueous dispersions for coating, impregnation or making fibers. With the progress of science and technology, traditional corrosion-resistant non-metallic materials for anti-corrosion equipment development is increasingly perfect, new corrosion-resistant non-metallic materials products are constantly emerging. In the adoption of new technologies, new materials to develop anti-corrosion new products of the wave, PTFE anti-corrosion products, a single show, rapid development. PTFE (PTFE) with high chemical stability, he is capable of almost all of the commonly used strong corrosion, hydroxide chemical, but also has the characteristics of high temperature, so it is an ideal anti-corrosion materials. Zhengzhou University of Technology through the study of processing technology, PTFE anti-corrosion products in the industrial application of more and more extensive.

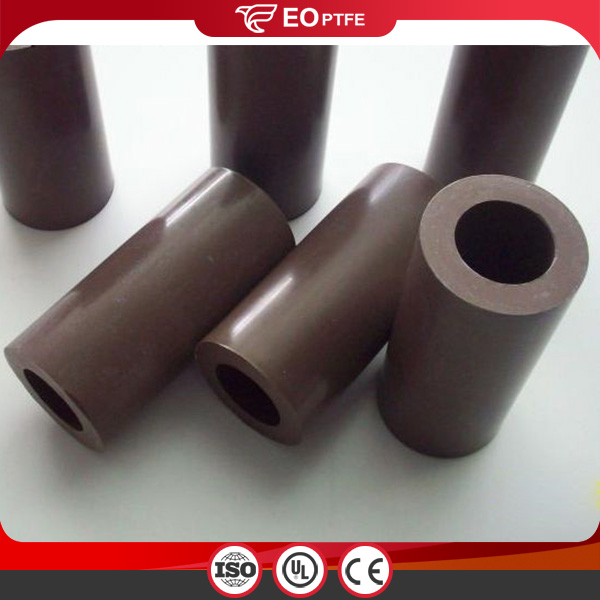

Filled Bronze plastic Ptfe Tubes
.jpg

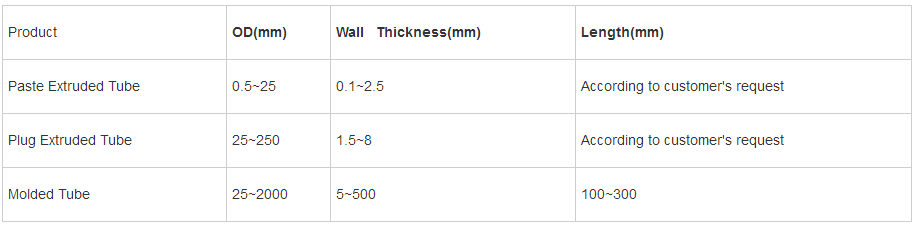

Product Specification

Product

OD(mm)

Wall Thickness(mm)

Length(mm)

Paste Extruded Tube

0.5~25

0.1~2.5

According to customer's request

Plug Extruded Tube

25~250

1.5~8

According to customer's request

Molded Tube

25~2000

5~500

100~300

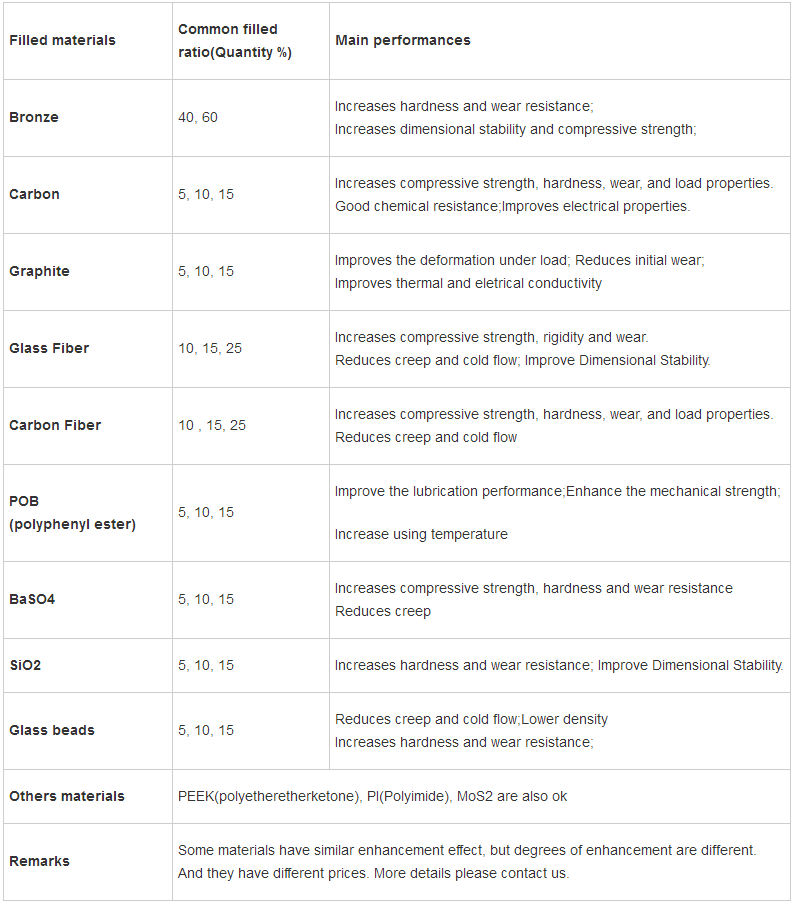

Details of PTFE filled with other materials

Filled materials

Common filled ratio

( Quantity %)

Main performances

Bronze

40, 60

Increases hardness and wear resistance;
Increases dimensional stability and compressive strength;

Carbon

5, 10, 15

Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance;Improves electrical properties.

Graphite

5, 10, 15

Improves the deformation under load; Reduces initial wear;
Improves thermal and eletrical conductivity

Glass Fiber

10, 15, 25

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow; Improve Dimensional Stability.

Carbon Fiber

10 , 15, 25

Increases compressive strength, hardness, wear, and load properties.
Reduces creep and cold flow

POB
(polyphenyl ester)

5, 10, 15

Improve the lubrication performance;Enhance the mechanical strength;

Increase using temperature

BaSO4

5, 10, 15

Increases compressive strength, hardness and wear resistance
Reduces creep

SiO2

5, 10, 15

Increases hardness and wear resistance; Improve Dimensional Stability.

Glass beads

5, 10, 15

Reduces creep and cold flow;Lower density
Increases hardness and wear resistance;

Others materials

PEEK(polyetheretherketone), PI(Polyimide), MoS2 are also ok

Remarks

Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us.

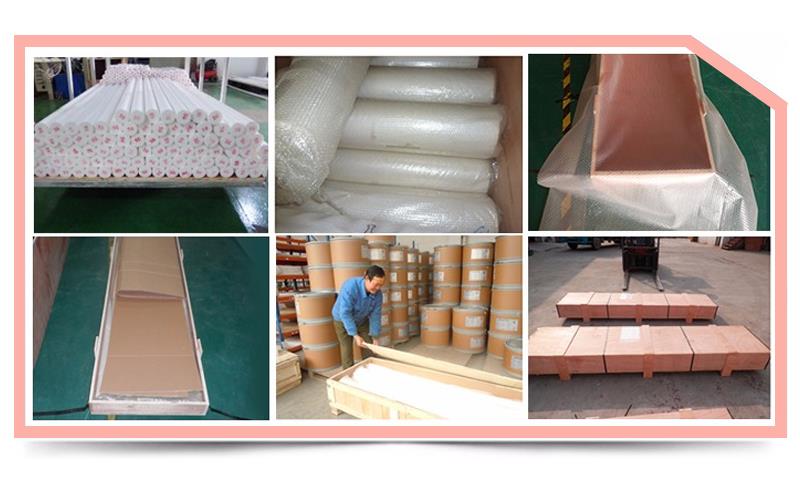

Product Packaging

Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

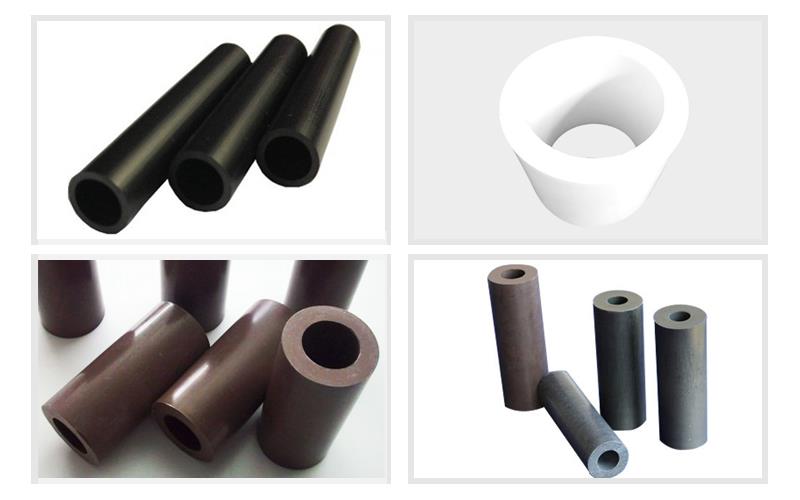

Filled Bronze plastic Ptfe Tubes
.jpg

Company Profile

Filled Bronze plastic Ptfe Tubes
.jpg
