Filled Roll PTFE Teflon Board

Filled Roll PTFE Teflon Board

Product Name:Filled PTFE Board
Sample: Free
Thickness: 0.03-100mm
Material: Bronze/Glass Fiber/Carbon/Others materials+PTFE
Size: Accept customization
Payment Terms: L/C, T/T, PayPal, Western Union
...

Send Inquiry

Product Description

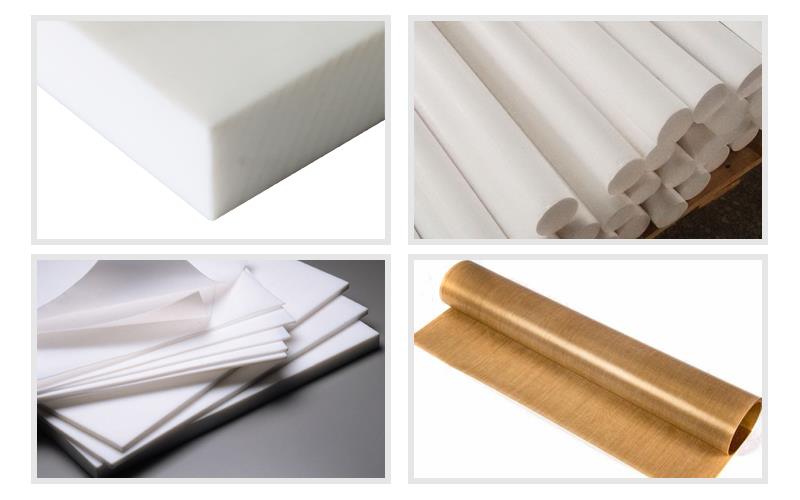

About PTFE sheet

PTFE Sheet is molded, skived or cut from 100% virgin PTFE. It has the best chemical corrosion resistance among known plastics, without being aging, lowest friction coefficient.

PTFE skived Sheet is manufactured by technique of compacting, sintering, rotary cutting with PTFE granular resin. It has good dielectric performance and non-aging, best anti chemistry corrosion ability and wide applying intension range.

PTFE molded sheet is manufactured by molding process with PTFE regular resin and sintering. It is very suitable for seals, lining, diaphragm, spacer guide and bearing pad for bridge.

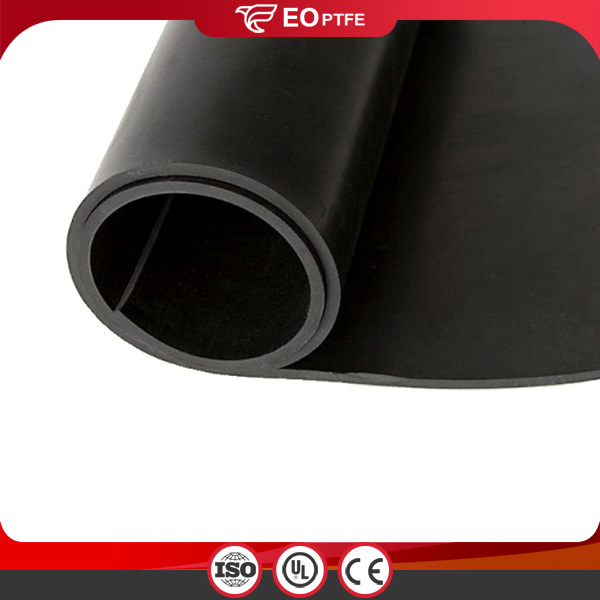

Filled roll PTFE teflon Board
.jpg

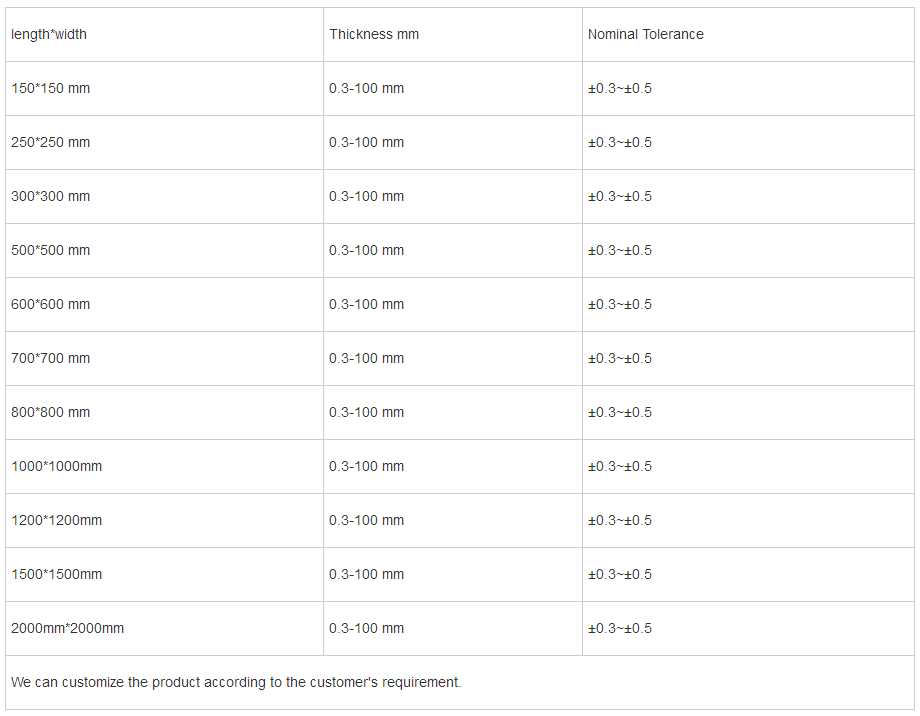

Product Specification

length*width

Thickness mm

Nominal Tolerance

150*150 mm

0.3-100 mm

±0.3~±0.5

250*250 mm

0.3-100 mm

±0.3~±0.5

300*300 mm

0.3-100 mm

±0.3~±0.5

500*500 mm

0.3-100 mm

±0.3~±0.5

600*600 mm

0.3-100 mm

±0.3~±0.5

700*700 mm

0.3-100 mm

±0.3~±0.5

800*800 mm

0.3-100 mm

±0.3~±0.5

1000*1000mm

0.3-100 mm

±0.3~±0.5

1200*1200mm

0.3-100 mm

±0.3~±0.5

1500*1500mm

0.3-100 mm

±0.3~±0.5

2000mm*2000mm

0.3-100 mm

±0.3~±0.5

We can customize the product according to the customer's requirement.


Details of Filled PTFE Board

Produced by compression molding processing, moulding, sintering, cooling of suspension PTFE resin into pure sheets and filled sheets (color, copper powder, glass fiber, graphite, carbon fiber, black, carbon powder,polyphenylene, anti-static plates, etc).

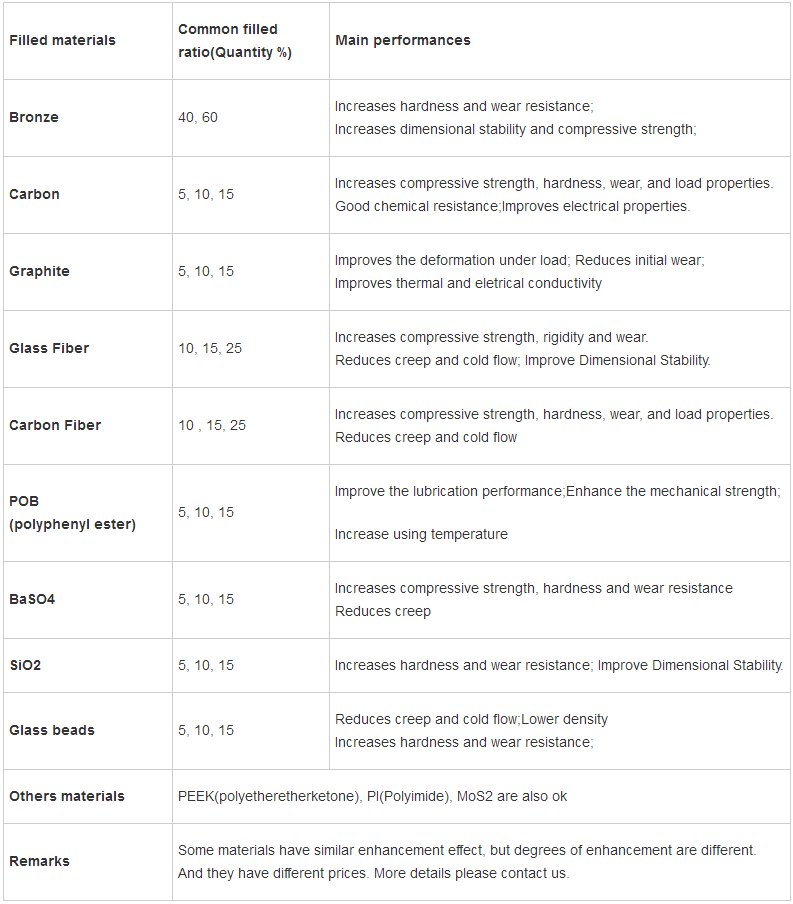

Filled materials

Common filled ratio(Quantity %)

Main performances

Bronze

40, 60

Increases hardness and wear resistance;
Increases dimensional stability and compressive strength;

Carbon

5, 10, 15

Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance;Improves electrical properties.

Graphite

5, 10, 15

Improves the deformation under load; Reduces initial wear;
Improves thermal and eletrical conductivity

Glass Fiber

10, 15, 25

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow; Improve Dimensional Stability.

Carbon Fiber

10 , 15, 25

Increases compressive strength, hardness, wear, and load properties.
Reduces creep and cold flow

POB
(polyphenyl ester)

5, 10, 15

Improve the lubrication performance;Enhance the mechanical strength;

Increase using temperature

BaSO4

5, 10, 15

Increases compressive strength, hardness and wear resistance
Reduces creep

SiO2

5, 10, 15

Increases hardness and wear resistance; Improve Dimensional Stability.

Glass beads

5, 10, 15

Reduces creep and cold flow;Lower density
Increases hardness and wear resistance;

Others materials

PEEK(polyetheretherketone), PI(Polyimide), MoS2 are also ok

Remarks

Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us.

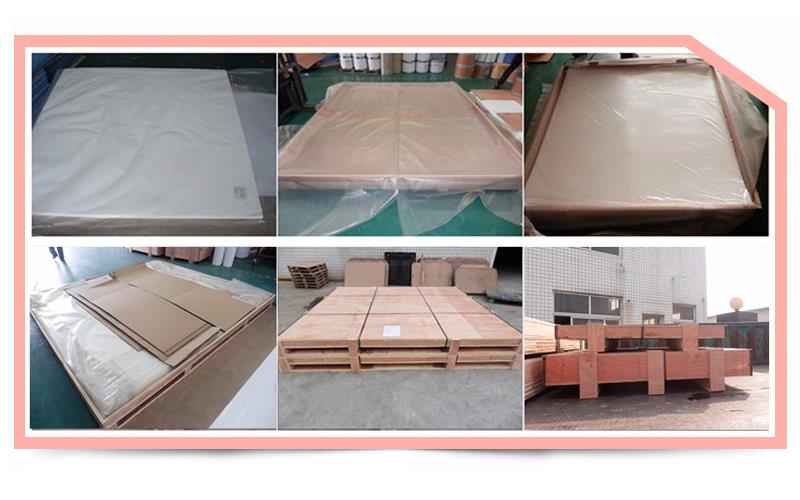

Product Packaging

Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.
