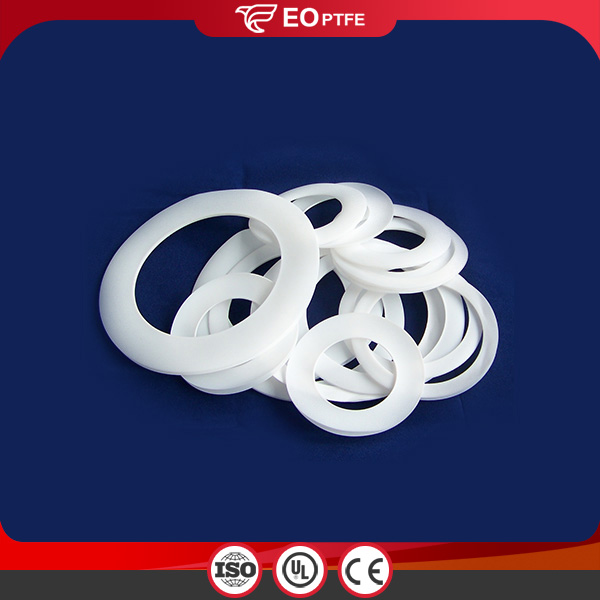

EN Standard PTFE Gaskets

EN Standard PTFE Gaskets

PTFE gaskets are cherished for their durable surface finish standards, rugged construction, impact resistance, durability and compact design. Available in a variety of specifications, we can also customize according to the information provided by customers....

Send Inquiry



Material

Virgin PTFE.  Specified   materials are also ok

Color

Pure materials is White. Other   color as order

Method

Skiving and mould

Certification

ISO9001, ISO14001, FDA, Rosh

MOQ

1kgs, specific szie according to   stock

Sample

Free

Price

USD7-11/kgs   according to the specification and quantity,
  the more the cheaper.

Package

Usually wooden case

Others

Can filled with other materials to   enhance performance





Specification

Standard Gasket



ENSI (PN2.0)   mm

EU   Standard(PN1.6)

JIS (16K)

JIS(10K)

Nomi-
  nal Dia

OD

ID

T

N.W.

Nomi-
  nal Dia

OD

ID

T

N.W.

Nomi-
  nal Dia

OD

ID

T

N.W.

Nomi-

nal Dia

OD

ID

N.W.

DN15

46.5

22

3

0.01

DN10

46

18

3

0.01

DN10

53

18

3

0.014

DN10

53

18

3

0.014

DN20

56

27

3

0.015

DN15

51

22

3

0.012

DN15

58

22

3

0.016

DN15

58

22

3

0.016

DN25

65.5

34

3

0.02

DN20

61

27

3

0.016

DN20

63

28

3

0.017

DN20

63

28

3

0.017

DN32

75

43

3

0.023

DN25

71

34

3

0.021

DN25

74

35

3

0.023

DN25

74

35

3

0.023

DN40

84.5

49

3

0.03

DN32

82

43

3

0.027

DN32

84

43

3

0.028

DN32

84

43

3

0.028

DN50

104.5

61

3

0.05

DN40

92

49

3

0.033

DN40

89

49

3

0.03

DN40

89

49

3

0.03

DN65

123.5

77

3

0.053

DN50

107

61

3

0.042

DN50

104

61

3

0.038

DN50

104

61

3

0.038

DN80

136.5

89

3

0.06

DN65

127

77

3

0.055

DN65

124

77

3

0.051

DN65

124

77

3

0.051

DN100

174.5

115

3

0.13

DN80

142

89

3

0.066

DN80

140

90

3

0.062

DN80

134

90

3

0.053

DN125

196

140

3

0.14

DN100

162

115

3

0.07

DN90

150

102

3

0.066

DN90

144

102

3

0.056

DN150

221.5

169

3

0.15

DN125

192

141

3

0.092

DN100

165

115

3

0.076

DN100

159

115

3

0.065

DN200

278.5

220

3

0.18

DN150

218

169

3

0.105

DN125

203

141

3

0.116

DN125

190

141

3

0.088

DN250

338

273

3

0.25

DN200

273

220

3

0.145

DN150

238

167

3

0.156

DN150

220

167

3

0.111

DN300

408

324

3

0.35

DN250

329

273

3

0.182

DN200

283

218

3

0.176

DN175

245

192

3

0.125

DN350

449

356

3

0.45

DN300

384

325

3

0.226

DN250

356

270

3

0.291

DN200

270

218

3

0.137

DN400

513

407

3

0.55

DN350

444

377

3

0.3

DN300

406

321

3

0.34

DN225

290

244

3

0.133

DN450

548

458

3

0.5

DN400

495

426

3

0.343

DN350

450

359

3

0.4

DN250

333

270

3

0.205

DN500

605

508

3

0.6

DN450

555

480

3

0.419

DN400

510

410

3

0.5

DN300

378

321

3

0.215

DN550

659

559

3

0.7

DN500

617

530

3

0.539

DN450

575

460

3

0.643

DN350

423

359

3

0.27

DN600

716.5

610

3

0.8

DN600

734

630

3

0.766

DN500

630

513

3

0.722

DN400

486

410

3

0.368



DN550

684

564

3

0.809

DN450

541

460

3

0.438



DN600

734

615

3

0.867

DN500

596

513

3

0.497



DN550

650

564

3

0.564



DN600

700

615

3

0.604



Custom specifications



Diamater

≤3000mm

Thickness

0.1-10mm



Product Features

Main features of PTFE gasket :

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2,  glass bead, polyamide.

Technical Indexes of pure PTFE gasket





Item

ASTM

Data

 Unit

Mechanical Properties

Density

D792

2.1~ 2.2

g/m3

Tensile strength

D638

≥15  about 18~ 45

MPa

Elongation at break

D638

≥150 about 180~ 350

%

Compression strength

D695

24

MPa

ShoreD Hardness

D636

50-60

-

Friction   coefficient

on steel

0.01

-

Thermal Properties

Working Temp



-180 ~ 260

°C

Melting point



330

°C

Produce Max. Temp



390

°C

Fire Resistance

UL94

V-0



Brittle point temperature



-268

°C

Electrical properties

Dielectric strength

D149

>1400

kV/mm

Volume resistivity

D257

>1018

Ω·cm

Surface Resistivity

D257

>1016

Ω

Dielectric constant

D150

2.1



Conventional properties

Chemical solvent resistance

Excellent



Water absorption (25 )

D570

0.01

24h/%

limit oxygen index

D2963

>95

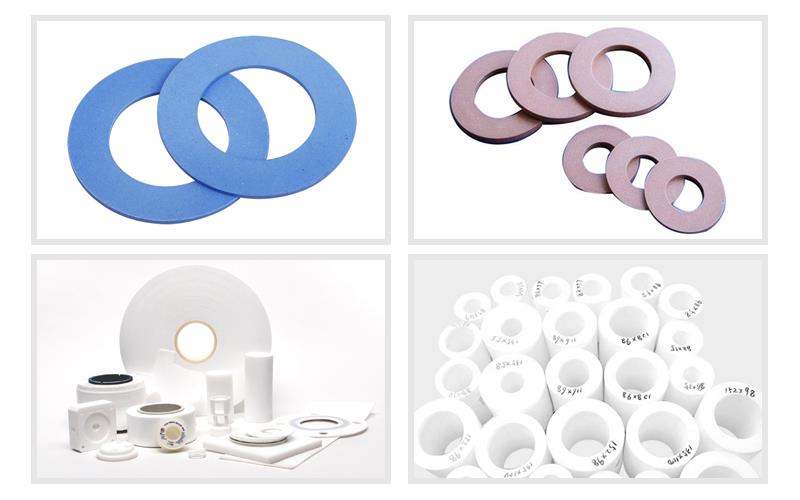

Product show

EN Standard PTFE Gaskets .jpg







Product Packaging

Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

EN Standard PTFE Gaskets .jpg



Company Profile

EN Standard PTFE Gaskets .jpg
