PTFE Oil Seal Rotary Shaft Seal Ring GRS

PTFE Oil Seal Rotary Shaft Seal Ring GRS

Product Name: PTFE oil Seal Rotary Shaft Seal ring GRS
Color: Coffee, Gold, Green
Sample: Free
Size: as order
Payment Terms: L/C, T/T, PayPal, Western Union
...

Send Inquiry

Product Description

The DEF rotary cap seal is a bi-directional seal for use in pneumatic and low to medium duty rotary or oscillating applications. The rotary rod seal is a two piece design comprised of a standard size o-ring energizing a wear resistant PTFE cap. The rotary rod seal offers long wear and low friction without stick-slip. This PTFE outer diameter is designed with a special interference wiht the o-ring to eliminate spinning between the o-ring and seal. Special grooves are designed into the PTFE inner diameter to provide lubrication and create a labyrinth effect for reduced leakage. The seal is commonly used in swivel joints,hose reels and machine applications.

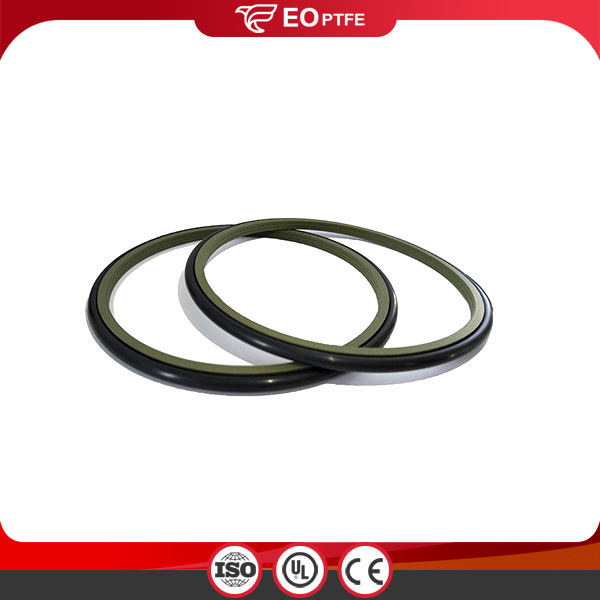

PTFE oil Seal Rotary Shaft Seal ring GRS
.jpg

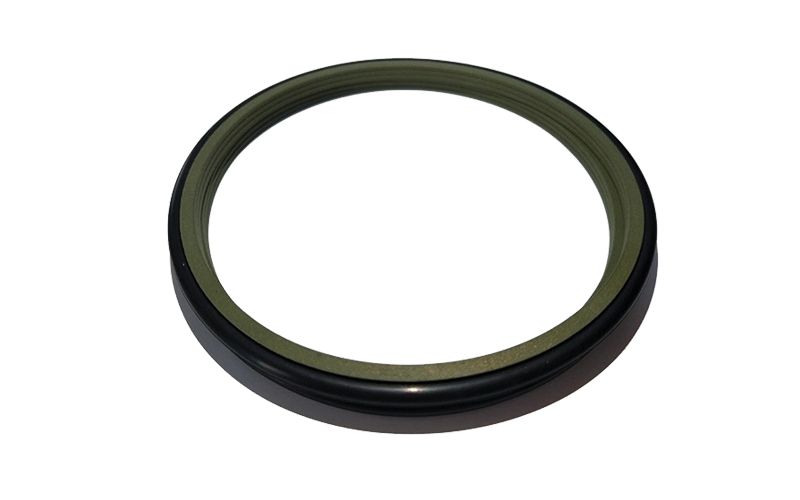

PTFE oil Seal Rotary Shaft Seal ring GRS
.jpg

Product Specification

Application Range of Ptfe Shaft Glyd Ring GRS:
working pressure :≤ 63MAP.

Pressure :≤60MPa
Temperature -45...+200 ℃
Sliding speed:15 m/s

Medium: Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water, air and others.


Product Packaging

(1)Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

(2)PTFE surface treated should be kept in dark place, can not be damaged.

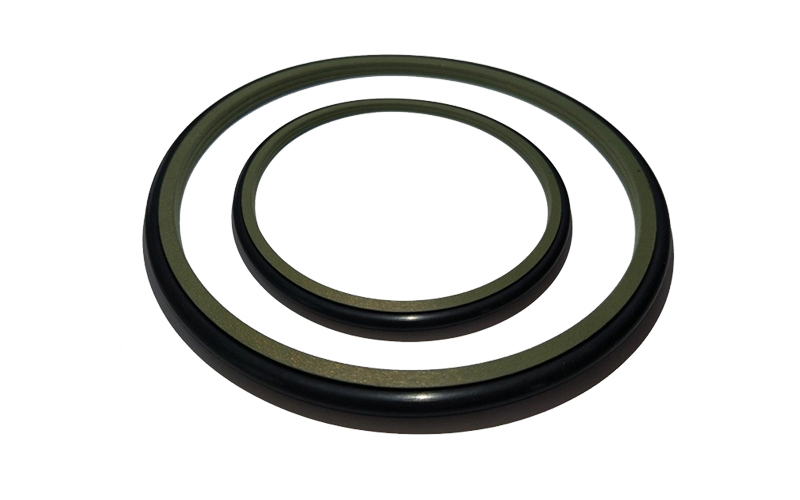

PTFE oil Seal Rotary Shaft Seal ring GRS
.jpg


Company Profile

PTFE oil Seal Rotary Shaft Seal ring GRS
.jpg




Hot Tags: PTFE oil seal rotary shaft seal ring GRS, suppliers, manufacturers, factory, wholesale, price, buy, cheap, bulk, quotation
