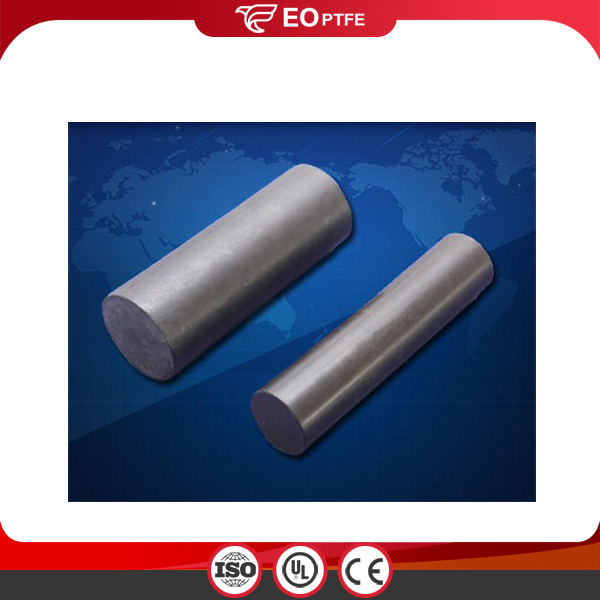

Enhance Anti High Temperature Filled PTFE Products

Enhance Anti High Temperature Filled PTFE Products

Enhance Anti High Temperature Filled PTFE Products have Excellent heat resistance, chemical resistance, non-adhesiveness and weather resistance. According to different application requirements, an appropriate amount of filler can be added for modification. (Fillers are glass fiber, para-polyphenylene, molybdenum disulfide, polyphenyl ester, graphite, carbon powder, carbon fiber, bronze powder, silicon powder, etc.)...

Send Inquiry



Material

Virgin PTFE and filled withCarbon   fiber Carbon fiber or other materials.  Specified materials   are also ok

Color

Please check the "color   show" as following

Method

Skiving and mould

Certification

ISO9001, ISO14001, FDA, Rosh

MOQ

According to the size and our   stock

Sample

Free

Price

According   to the specification, quantity and materials
  the more the cheaper.

Package

Usually wooden case

PTFE has excellent heat resistance, chemical resistance, non-adhesiveness and weather resistance, but it has a large linear expansion coefficient, poor dimensional stability, low hardness, and poor wear resistance. Under the load, it shows a large "cold flow", which limits its application. In order to overcome these shortcomings, according to different application requirements, an appropriate amount of filler can be added for modification. (Filling agent is glass fiber, para-polyphenylene, molybdenum disulfide, polyphenyl ester, graphite, carbon powder, carbon fiber, bronze powder, silicon powder, etc.) in order to obtain excellent wear resistance while maintaining its low friction. Sex, high temperature resistance 350 degrees, high strength, high stiffness and dimensional.



Product Features

Main features of Enhance Anti High Temperature Filled PTFE  :

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2,  glass bead, polyamide.


Even if PTFE products have excellent properties, like high/low temperature resistance, chemcial resistance, weathering resistance, dielectric superiority and high lubricity, sometimes we still need to improve its hardness, wear resistance, creep resistance and dimensional stability.



Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2,  glass bead, polyamide.



Details of PTFE filled with other materials :

Filled materials

Common filled ratio

( Quantity %)

Main performances
Carbon Fiber10 ,  15,  25Increases compressive strength,   hardness, wear, and load properties.
  Reduces creep and cold flow
RemarksSome materials have similar enhancement effect, but degrees of enhancement are different. And they have  different prices.  More details please contact us.



ItemPure PTFE60% Bronze20% Glass Fiber15% Glass Fiber 5% graphite20%  Carbon fiberUnit
Density2.183.92.262.222.01g/m3
Tensile strength276127175158189MPa
Elongation at break23810120720592%
ROCKWELL Hardness3.233.86.411.332.1-
Friction coefficient  0.130.18-0.20.20-0.240.15-0.170.16-0.18-
Bending strength207280210225320°C

Sepecification

Specifications of PTFE skived Sheet

Regular specifications

Thickness(mm)

Width
  1000mm

Width
  1200mm

Width
  1500mm

Width
  2000mm

Width
  2700mm

0.1, 0.2, 0.3, 0.4

√

√

√

—

—

0.5, 0.8

√

√

√

√

—

1, 1.5, 2, 2.5, 3, 4, 5, 6

√

√

√

√

√

7, 8

√

√

—

—

—

Custom specifications

Thickness

0.1mm ~ 10.0mm

Width

300 ~ 2700mm



Specifications of  PTFE molded sheet

Regular specifications

Thickness(mm)

Length*Width
  1000*1000mm

Length*Width
  1200*1200mm

Length*Width
  1500*1500mm

Length*Width
  1800*1800mm

Length*Width
  2000*2000mm

2, 3

√

√

√

—

—

4 , 5, 6, 8, 10, 15, 20,
  25, 30, 40, 50, 60, 70

√

√

√

√

√

80, 90 , 100

√

√

√

—

—

Custom specifications

Thickness

0.1mm ~ 10.0mm

Width

300 ~ 2700mm

√  The sizes range can be processed



Product Packaging

(1)Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

(2)PTFE surface treated should be kept in dark place, can not be damaged.
