Product Name:Graphite carbon fiber PTFE Tubes
Sample: Free
Method: Extruded or mould
Materials: PTFE
Size: Accept customization
Payment Terms: L/C, T/T, PayPal, Western Union...

Send Inquiry

Product Description

Ptfe tube, teflon tube (hereinafter referred to as F4 tube, ptfe tube) is to use the high quality of plunger extrusion tube, the use of special processing technology, make the steel pipe and plastic pipe together, can bear love positive pressure 1.6 Mpa, negative pressure: 77 kpa.Can be used in -60 ~+260, with reliable and excellent corrosion resistance.The strong corrosive gas and liquid at high temperature are not replaceable by other pipelines.It is widely used in the fields of machinery, chemical industry, aviation, electric and electronics, defense industry, advanced technology, medical and sanitation and electrical insulation.

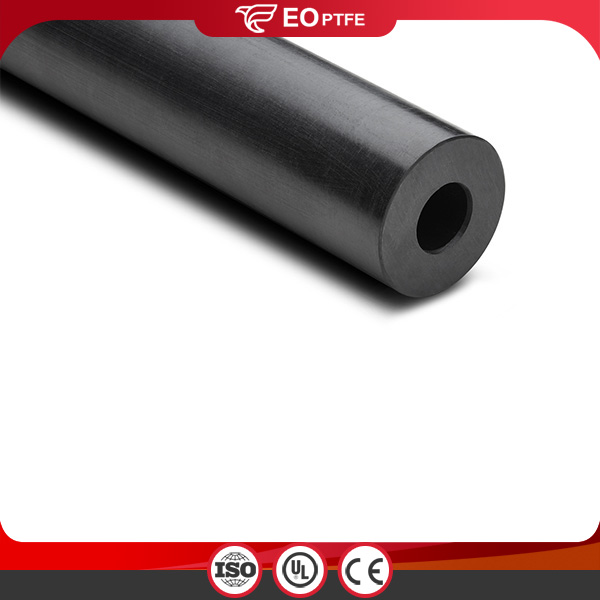

Graphite carbon fiber PTFE Tubes
.jpg

Characteristics of Graphite carbon fiber PTFE Tubes:

1.excellent corrosion-resistance

2.aging-resistance

3.high(low) temperature resistance

4.good lubrication and insulation

5.non-adhesiveness

6.toxicological harmles

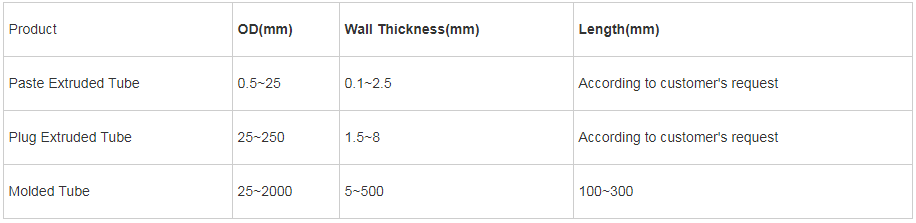

Product Specification

Product

OD(mm)

Wall Thickness(mm)

Length(mm)

Paste Extruded Tube

0.5~25

0.1~2.5

According to customer's request

Plug Extruded Tube

25~250

1.5~8

According to customer's request

Molded Tube

25~2000

5~500

100~300

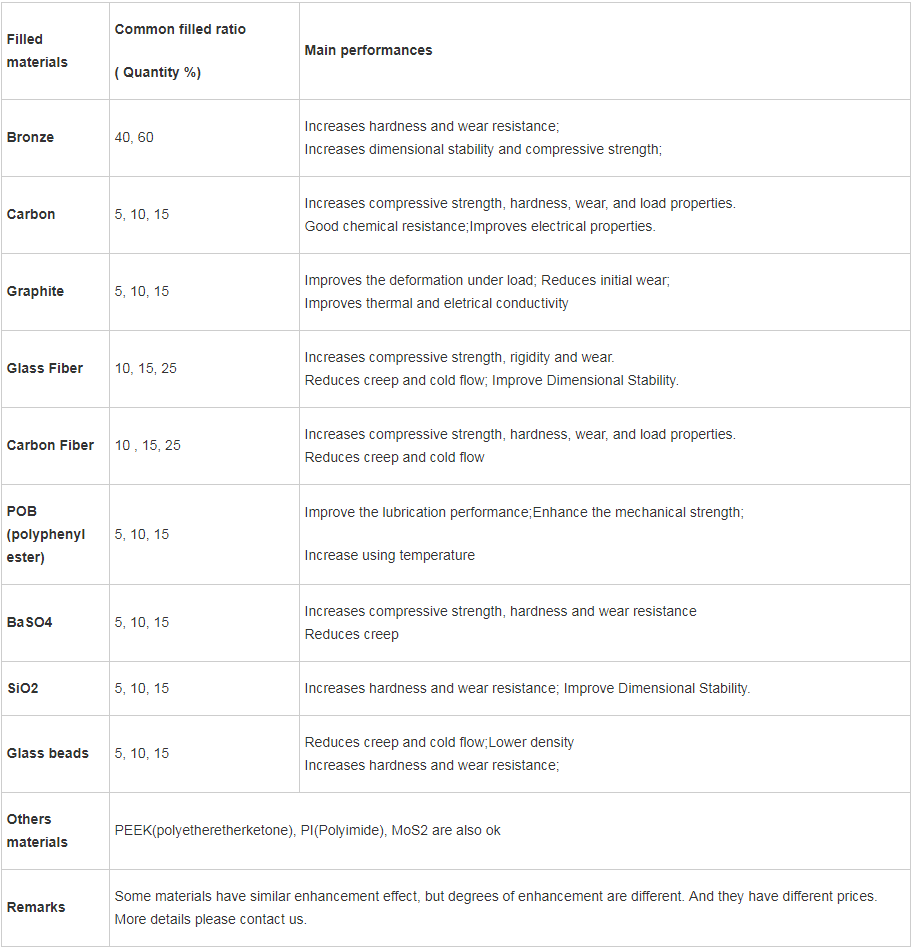

Details of PTFE filled with other materials

Filled materials

Common filled ratio

( Quantity %)

Main performances

Bronze

40, 60

Increases hardness and wear resistance;
Increases dimensional stability and compressive strength;

Carbon

5, 10, 15

Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance;Improves electrical properties.

Graphite

5, 10, 15

Improves the deformation under load; Reduces initial wear;
Improves thermal and eletrical conductivity

Glass Fiber

10, 15, 25

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow; Improve Dimensional Stability.

Carbon Fiber

10 , 15, 25

Increases compressive strength, hardness, wear, and load properties.
Reduces creep and cold flow

POB
(polyphenyl ester)

5, 10, 15

Improve the lubrication performance;Enhance the mechanical strength;

Increase using temperature

BaSO4

5, 10, 15

Increases compressive strength, hardness and wear resistance
Reduces creep

SiO2

5, 10, 15

Increases hardness and wear resistance; Improve Dimensional Stability.

Glass beads

5, 10, 15

Reduces creep and cold flow;Lower density
Increases hardness and wear resistance;

Others materials

PEEK(polyetheretherketone), PI(Polyimide), MoS2 are also ok

Remarks

Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us.

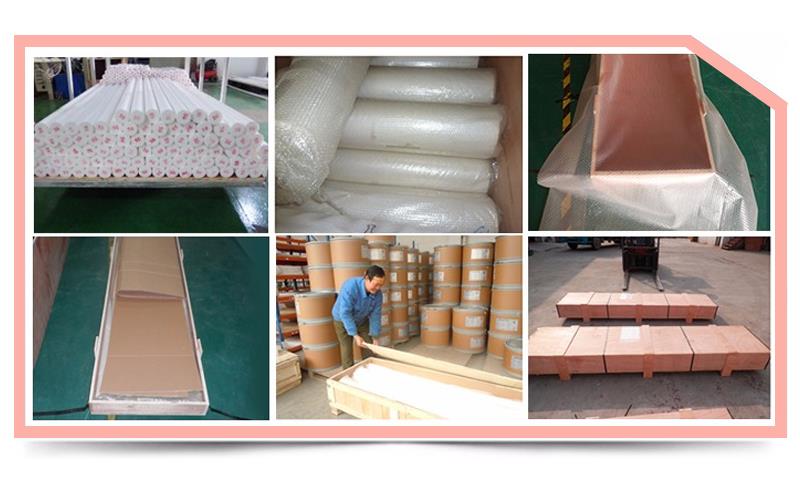

Product Packaging

Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

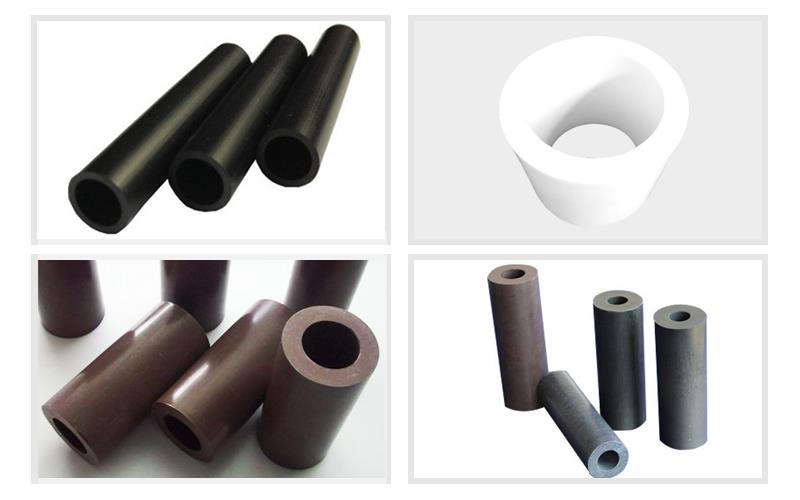

Graphite carbon fiber PTFE Tubes
.jpg
