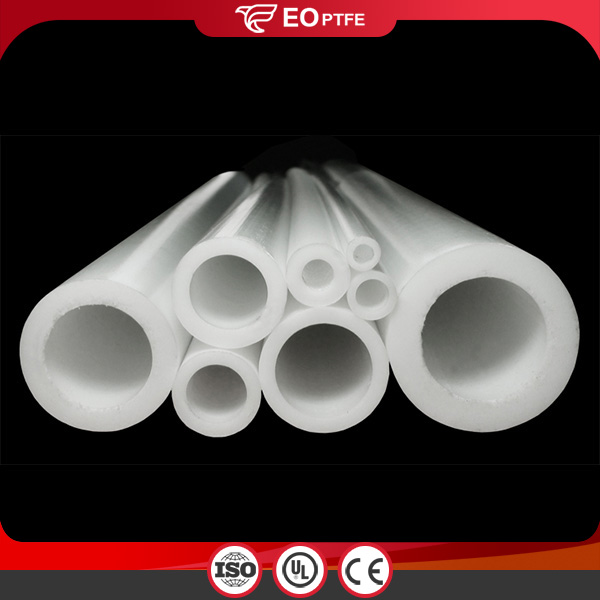

Extruded PTFE Tubes

Extruded PTFE Tubes are divided into three categories according to their processing technology: tubes with a diameter of 4mm-9mm are made by dispersing polymerized PTFE resin by paste pressing; tubes with a diameter of 10mm-50mm are selected as suspension PTFE. The resin is made by extrusion; the tube with a diameter of 50mm-300mm is made by molding....

Send Inquiry

Product Description

Material	Virgin PTFE. Specified materials are also ok
Color	Pure materials is White. Other color as order
Method	Extruded
Certification	ISO9001, ISO14001, FDA, Rosh
MOQ	1kgs, specific szie according to stock
Sample	Free
Price	according to the specification and quantity, the more the cheaper.
Price
Package	Usually wooden case
Others	Can filled with other materials to enhance performance

PTFE is an important variety of engineering plastics and has a wide range of applications. It has excellent high and low temperature performance and chemical stability, excellent electrical insulation, non-adhesion, weather resistance, non-combustibility and good lubricity.

Application

Chemical-resistant, non-adhesive liquid transfer machine joints are not covered with protection

Sensor protection

Metal ball non-adhesive

Protection of medicines at high temperatures

Specification

Specification of PTFE tube

	OD(mm)	Wall Thickness(mm)	Length(mm)
Paste Extruded Tube	0.5~25	0.1~2.5	According to customer's request

Product Features

Main features of PTFE tube :

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

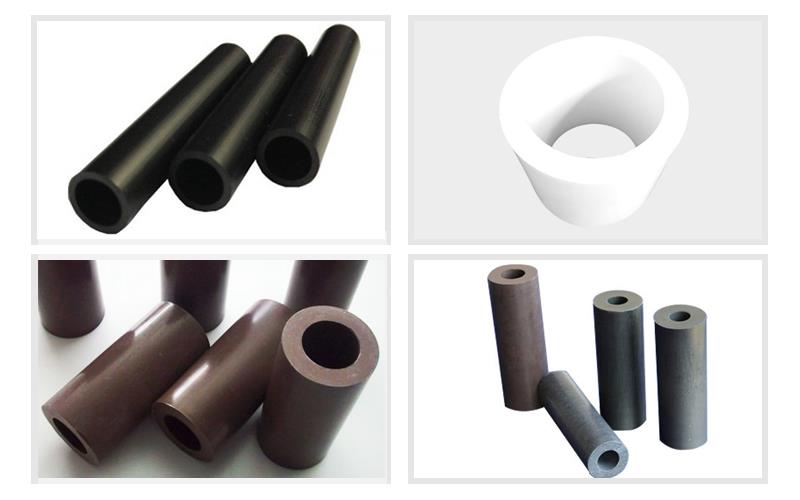

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

7. Slidability: PTFE coatings have a lower coefficient of friction. The friction coefficient changes when the load slides, but the value is only between 0.05 and 0.15.

8. Moisture resistance: The surface of Teflon coating is not water and oily. It is not easy to get into the solution during production. If there is a small amount of dirt, it can be removed by simple wiping. Short downtime, saving time and increasing productivity.

9. Wear resistance: Excellent wear resistance under high load. It has the dual advantages of wear resistance and non-sticking under a certain load.

Technical datas of pure PTFE tube

Item	ASTM	Data	Unit
Mechanical Properties
Density	D792	2.1~ 2.2	g/m3
Tensile strength	D638	≥25 about 25 ~ 45	MPa
Elongation at break	D638	≥150 about 200~ 350	%
Compression strength	D695	24	MPa
ShoreD Hardness	D636	50-60	-
Friction coefficient	on steel	0.01	-
Thermal Properties
Working Temp		-180 ~ 260	°C
Melting point		330	°C
Produce Max. Temp		390	°C
Fire Resistance	UL94	V-0
Brittle point temperature		-268	°C
Electrical properties
Dielectric strength	D149	>1400	kV/mm
Volume resistivity	D257	>10¹⁸	Ω·cm
Surface Resistivity	D257	>10¹⁶	Ω
Dielectric constant	D150	2.1
Conventional properties
Chemical solvent resistance	Excellent
Water absorption (25℃ )	D570	0.01	24h/%
limit oxygen index	D2963	>95
