Virgin Materials Plastic PTFE Films

PTFE Teflon Film has made extensive investments in the latest skiving technologies, enabling us to provide customers with high quality, competitively priced products. For its excellent dielectric capability, anti-aging and anti-corrosion property, super thin PTFE teflon skived Tape&Film has been used in a wide range of industries including the electronics and semi density industries....

Send Inquiry

Material	Virgin PTFE. Specified materials are also ok
Color	Pure materials is White. Other color as order
Method	Skiving and mould
Certification	ISO9001, ISO14001, FDA, Rosh
MOQ	1kgs, specific szie according to stock
Sample	Free
Price	According to the specification and quantity, the more the cheaper.
Price
Package	Usually wooden case
Others	Can filled with other materials to enhance performance
Manufacturer	Wuxi Xiangjian PTFE Products Co.,ltd in Jiangsu China

Furthermore, it is classified into oriented film, semi-oriented film and non-oriented film. Super thin PTFE teflon skived Tape&Film is available in a wide range of widths, thickness and colors. Especially, Senrong’s new investment in a high precision film skiving machine will make the production of ultra thin film or sheet possible, and can consistently achieve the tightest tolerance of ±.05 mils so that we can meet these exacting demands from customers worldwide.

Specification

Specification of PTFE Film (can be customized)

Item	Thickness(mm)	Thickness Tolerance	Width(mm)	Item	Thickness(mm)	Thickness Tolerance	Width(mm)
High-density	0.015	0~+0.01	10-120	Common	0.03	0~+10%	30-1500
	0.02				0.05
	0.03				0.08
	0.04				0.10
	0.05				0.15
	0.07				0.20
	0.08				0.25
	0.90				0.30
	0.10				0.40
	0.15				0.50

Product Features

Main features of PTFE sheet :

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

Main Properties of PTFE Film

Property	Unit	High-density	Common
Tensile strength	MPa	≥30	≥10
Elongation at rupture	%	≥30	≥100
1MHz dielectric loss tangent		2.5×10-4	--
1MHz dielectric constant		average 1.8-2.2	--
Dc breakdown voltage (Normal temperature)	KV/M	average 200	average 30
Dc breakdown voltage (Normal temperature)	KV/M	lowest 40	average 30

It is made of suspended PTFE resin by molding, sintering, cooling into a blank, and then turning and rolling. The turned film is a non-oriented film, and the non-oriented film is calendered to form an oriented film. The non-oriented film is calendered from 1.1 to 1.8 times as a semi-oriented film. Polytetrafluoroethylene film is used in capacitor dielectrics for wire insulation, electrical instrument insulation, and gaskets. The polytetrafluoroethylene film is divided into a PTFE color film, a PTFE activated film and a F46 film.

The PTFE activation film is a film made of a polytetrafluoroethylene film, a filled film, and a color film, and then subjected to surface activation treatment. Adding fillers such as pigment, glass fiber, carbon fiber, graphite, bronze powder, etc. to the product, further improving the performance after activation treatment, can be combined with rubber, metal, etc., and can also make special tape to meet the design requirements. Widely used in light industry, military, aerospace, oil fields and other fields.

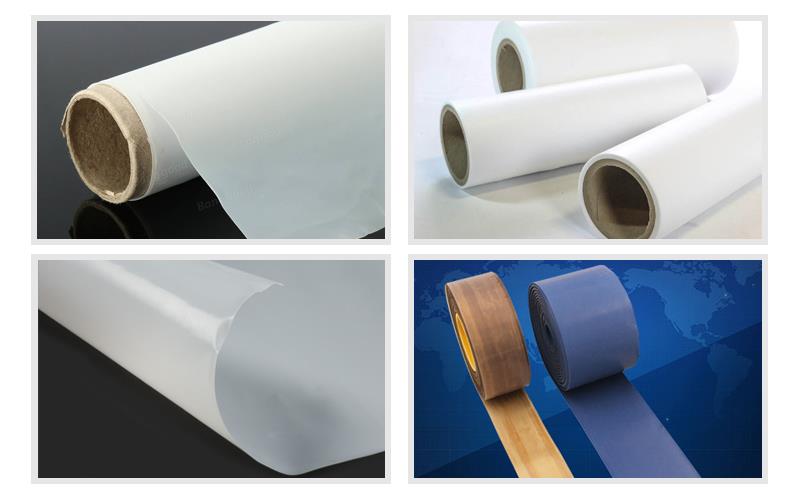

Product Show

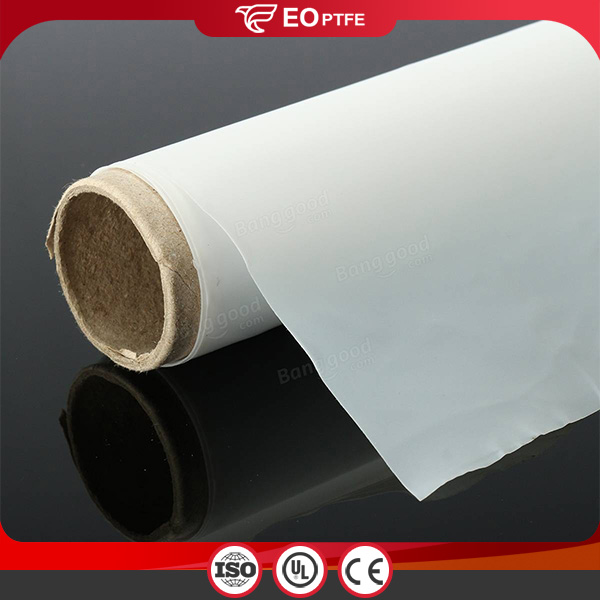

Virgin materials Plastic PTFE films
