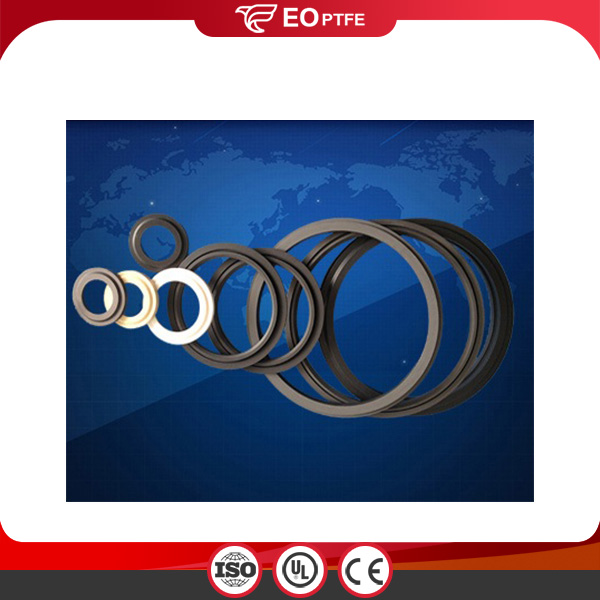

Enhance Wear Resistance Filled PTFE Products

Enhance Wear Resistance Filled PTFE Products

PTFE has outstanding excellent comprehensive properties, high temperature resistance, corrosion resistance, non-stick, self-lubricating, excellent dielectric properties and low friction coefficient. Adding any filler that can withstand the sintering temperature of PTFE in PTFE can greatly improve its mechanical properties. . At the same time, maintain other excellent properties of PTFE. The filled varieties are glass fiber, metal, metal oxide, graphite, molybdenum disulfide, carbon fiber, polyimide, etc....

Send Inquiry


Material

Virgin PTFE and filled   with Glass fiber, Graphite, Carbon, Molybdenum disulfide   or other materials.  Specified materials are also ok

Color

Please check the "color   show" as following

Method

Skiving and mould

Certification

ISO9001, ISO14001, FDA, Rosh

MOQ

According to the size and our   stock

Sample

Free

Price

According   to the specification, quantity and materials

the more the cheaper.

Package

Usually wooden case



Specification

Specifications of PTFE skived Sheet



Regular specifications

Thickness(mm)

Width
  1000mm

Width
  1200mm

Width
  1500mm

Width
  2000mm

Width
  2700mm

0.1, 0.2, 0.3, 0.4

0.5, 0.8

1, 1.5, 2, 2.5, 3, 4, 5, 6

7, 8

Custom specifications

Thickness

0.1mm ~ 10.0mm

Width

300 ~ 2700mm



Specifications of  PTFE molded sheet



Regular specifications

Thickness(mm)

Length*Width
  1000*1000mm

Length*Width
  1200*1200mm

Length*Width
  1500*1500mm

Length*Width
  1800*1800mm

Length*Width
  2000*2000mm

2, 3

4 , 5, 6, 8, 10, 15, 20,
  25, 30, 40, 50, 60, 70

80, 90 , 100

Custom specifications

Thickness

0.1mm ~ 10.0mm

Width

300 ~ 2700mm


 √  The sizes range can be processed


Product Features

Main features of pure PTFE sheet :

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2,  glass bead, polyamide.


Even if PTFE products have excellent properties, like high/low temperature resistance, chemcial resistance, weathering resistance, dielectric superiority and high lubricity, sometimes we still need to improve its hardness, wear resistance, creep resistance and dimensional stability.


Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2,  glass bead, polyamide.


Details of PTFE filled with other materials :

Filled materials

Common filled ratio

( Quantity %)

Main performances

Carbon

5,  10, 15

Increases compressive strength,   hardness, wear, and load properties.

Good chemical resistance;Improves   electrical properties.

Graphite

5,  10,  15

Improves the deformation under   load; Reduces initial wear;

Improves thermal and eletrical   conductivity

Carbon Fiber

10 ,  15,  25

Increases compressive strength,   hardness, wear, and load properties.

Reduces creep and cold flow

Others materials

PEEK(polyetheretherketone),   PI(Polyimide), MoS2 are also ok

Remarks

Some materials have similar   enhancement effect, but degrees of enhancement are different. And they have   different prices.  More details please contact us.


Item

Pure PTFE

60% Bronze

20% Glass Fiber

15% Glass Fiber 5% graphite

20%  Carbon fiber

Unit

Density

2.18

3.9

2.26

2.22

2.01

g/m3

Tensile strength

276

127

175

158

189

MPa

Elongation at break

238

101

207

205

92

%

ROCKWELL Hardness

3.2

33.8

6.4

11.3

32.1

-

Friction   coefficient

0.13

0.18-0.2

0.20-0.24

0.15-0.17

0.16-0.18

-

Bending strength

207

280

210

225

320

°C


Product Packaging

(1)Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

(2)PTFE surface treated should be kept in dark place, can not be damaged.
