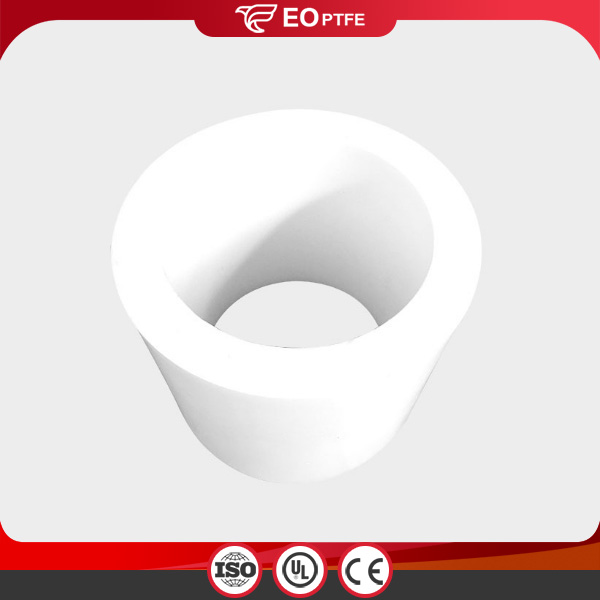

Moulded PTFE Tubes

Moulded PTFE Tubes

Moulded PTFE Tubes are divided into three categories according to their processing technology: tubes with a diameter of 4mm-9mm are made by dispersing polymerized PTFE resin by paste pressing; tubes with a diameter of 10mm-50mm are selected as suspension PTFE. The resin is made by extrusion; the tube with a diameter of 50mm-300mm is made by molding....

Send Inquiry

Product Description


Material

Virgin PTFE.  Specified   materials are also ok

Color

Pure materials is White. Other   color as order

Method

Mould

Certification

ISO9001, ISO14001, FDA, Rosh

MOQ

1kgs, specific szie according to   stock

Sample

Free

Price

  according to the specification and quantity,

the more the cheaper.

Package

Usually wooden case

Others

Can filled with other materials to   enhance performance


Specification

Specification of PTFE tube


OD(mm)

Wall Thickness(mm)

Length(mm)

Plug Extruded Tube

25~250

1.5~8

According to customer's request

Molded Tube

25~2000

5~500

100~300



Product Features

Main features of Moulded PTFE Tubes :

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2,  glass bead, polyamide.


Technical datas of  pure PTFE tube

Item

ASTM

Data

 Unit

Mechanical Properties

Density

D792

2.1~ 2.2

g/m3

Tensile strength

D638

≥25  about 25 ~ 45

MPa

Elongation at break

D638

≥150 about 200~ 350

%

Compression strength

D695

24

MPa

ShoreD Hardness

D636

50-60

-

Friction   coefficient

on steel

0.01

-

Thermal Properties

Working Temp


-180 ~ 260

°C

Melting point


330

°C

Produce Max. Temp


390

°C

Fire Resistance

UL94

V-0


Brittle point temperature


-268

°C

Electrical properties

Dielectric strength

D149

>1400

kV/mm

Volume resistivity

D257

>1018

Ω·cm

Surface Resistivity

D257

>1016

Ω

Dielectric constant

D150

2.1


Conventional properties

Chemical solvent resistance

Excellent



Water absorption (25 )

D570

0.01

24h/%

limit oxygen index

D2963

>95




Application

1. Anti-corrosion performance application

PTFE materials have become the main corrosion-resistant materials in the petroleum, chemical, textile and other industries due to their excellent corrosion resistance. Specific applications include: conveying pipes for corrosive gases, exhaust pipes, steam pipes, high-medium and low-pressure pipes in aircraft hydraulic systems and cold-press systems.

2. Low friction performance in load applications

Specific uses include: bearings for chemical equipment, paper machinery, agricultural machinery

3. In electrical and electronic applications

The inherent low loss and small dielectric constant of PTFE materials make it an enameled wire for use in micro motors, thermocouples, control devices, etc.

4. Anti-stick performance application

PTFE material has the smallest surface tension in solid materials, does not adhere to any position, and colleagues also have excellent properties of high and low temperature resistance.

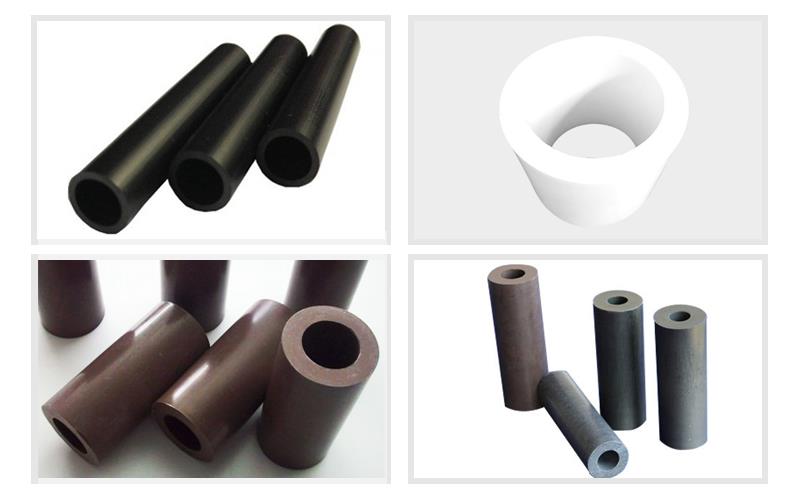

Product Show

Moulded PTFE Tubes .jpg

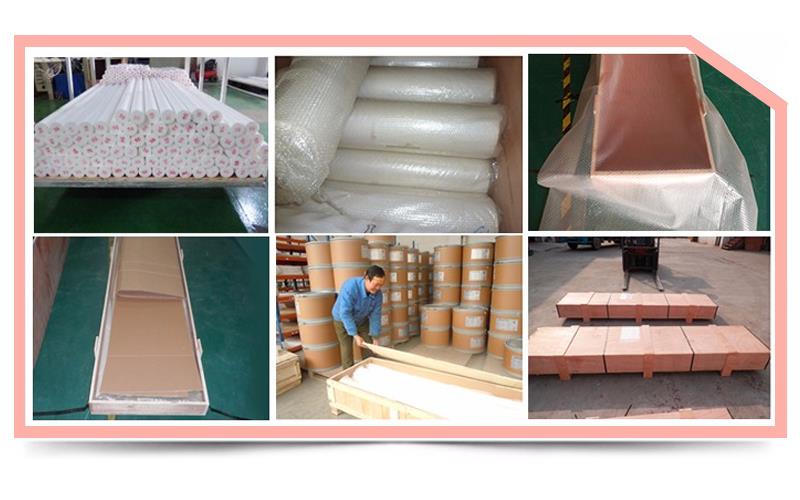

Product Packaging

Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

Moulded PTFE Tubes .jpg
