White Plastic Molded PTFE Rod

White Plastic Molded PTFE Rod

White Plastic Molded PTFE Rod is a rod made of a PTFE suspension resin which is formed by a molding method and then sintered at a high temperature. It is mainly used for some long products and non-standard mechanical parts: seals/gaskets, rings, wear plates/seats, insulation parts, corrosion resistance industry, mechanical parts, linings, oil and gas, petrochemical Industry, chemical industry, equipment and so on....

Send Inquiry

Teflon Bar is an unfilled PTFE resin suitable for processing a variety of gaskets, seals and lubricants that work in corrosive media, and electrical insulation parts used at various frequencies. Bars (which may contain recycled polytetrafluoroethylene resin) molded by molding, paste extrusion or plunger extrusion processes.

MaterialVirgin PTFE.  Specified materials are also ok
ColorPure materials is White. Other color as order
MethodMould
CertificationISO9001, ISO14001, FDA, Rosh
MOQ1kgs, specific szie according to stock
SampleFree
PriceUSD7-11/kgs according to the specification and quantity,
the more the cheaper.
PackageUsually wooden case
Others Can filled with other materials to enhance performance
ManufacturerWuxi Xiangjian PTFE Products Co.,ltd in Jiangsu China


Application

PTFE bar has two kinds of push rods and molded rods. In the known plastics, PTFE has the best chemical resistance and dielectric properties. And with the lowest coefficient of friction, mainly for some long products and non-standard mechanical parts: seals / gaskets, rings, wear plates / seats, insulation parts, corrosion resistance industry, mechanical parts, lining, oil And natural gas, petrochemical industry, chemical industry, equipment manufacturers.


Specification

The General Specification of PTFE Rod


OD(mm)Length(mm)
310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 490, 500100



Custom specifications of PFFE Rod

ItemDia.(mm)Length(mm)
Molded Rod5~50010~300


Product Features

Main features of PTFE rod:

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2,  glass bead, polyamide.

Properties of pure PFFE Rod


ItemASTMData Unit
Mechanical Properties
DensityD7922.1~ 2.2g/m3
Tensile strengthD638≥25  about 25 ~ 45MPa
Elongation at breakD638≥150 about 200~ 350%
Compression strengthD69524MPa
ShoreD HardnessD63650-60-
Friction coefficient   on steel0.01-
Thermal Properties
Working Temp
-180 ~ 260°C
Melting point
330°C
Produce Max. Temp
390°C
Fire ResistanceUL94V-0
Brittle point temperature
-268°C
Electrical properties
Dielectric strengthD149>1400kV/mm
Volume resistivityD257>1018Ω·cm
Surface ResistivityD257>1016Ω
Dielectric constantD1502.1
Conventional properties
Chemical solvent resistanceExcellent

Water absorption (25℃ )D5700.0124h/%
limit oxygen indexD2963>95

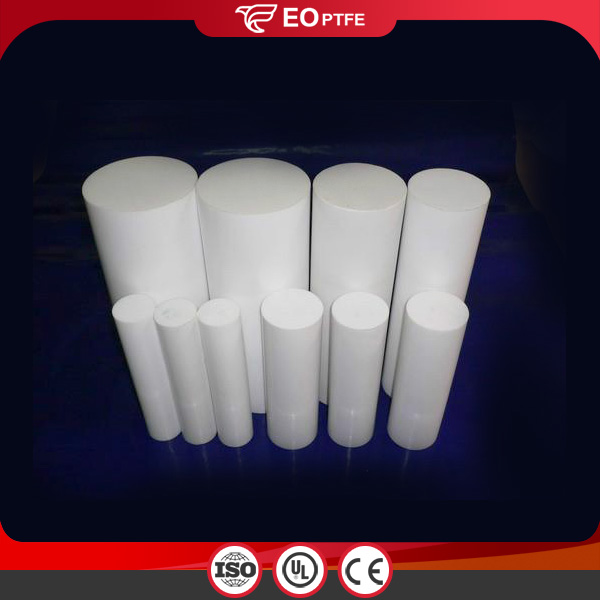

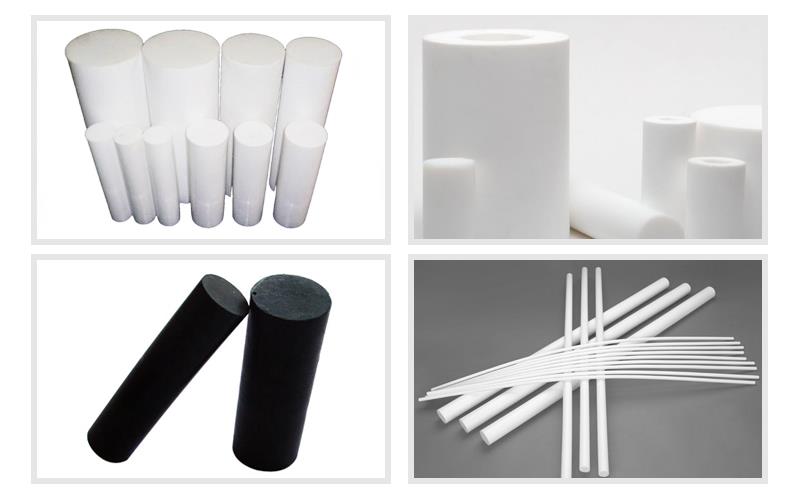

Product Show

White Plastic Molded Ptfe Rod .jpg

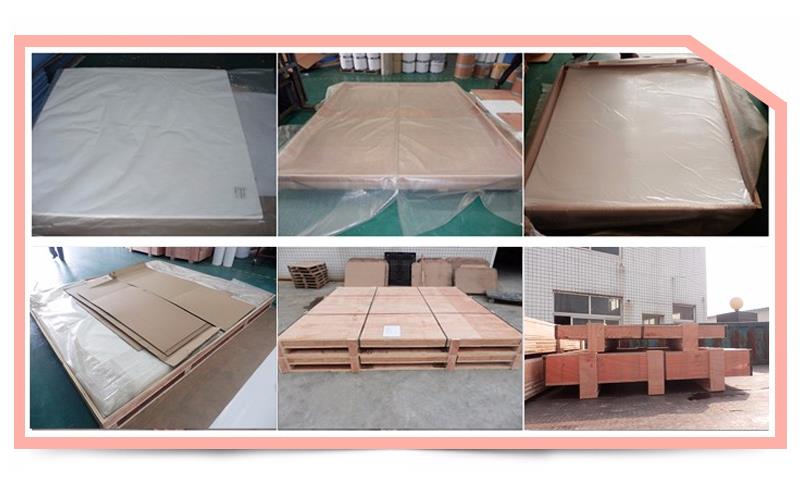

Product Packaging

Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

White Plastic Molded Ptfe Rod .jpg

Company Profile

White Plastic Molded Ptfe Rod .jpg
