Green Bronze Wear PTFE Guide Strip

Green Bronze Wear PTFE Guide Strip

Product Name:Green bronze wear PTFE Guide Strip
Sample: Free
Material: PTFE - Bronze PTFE - Carbon
Size: Accept customization
Payment Terms: L/C, T/T, PayPal, Western Union
...

Send Inquiry

Product Description

Application:

The Guide Belt zpst is suitable for the hydraulic cylinder, the piston in the cylinder and the piston rod's guidance, plays the support and the guiding function.

Standard Materials: Filled PTFE F-PTFE.

features: The F4 Bronze composite Guide belt leads the function and absorbing vibration performance, and has excellent abrasion resistance and good damping effect.

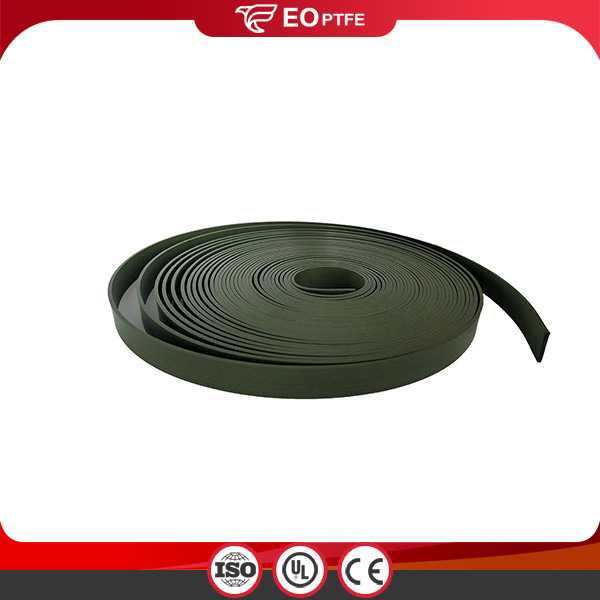

Green bronze wear PTFE Guide Strip
.jpg

Green bronze wear PTFE Guide Strip
.jpg

Style: Sealing Strip

Application: Auxiliary Seal

Standard: Standard

Product Name:: PTFE Guide Strip

Material:: PTFE + Bronze/Carbon 

Certificate:: ISO9001

Samples:: Available

Width:: 5-25mm

Thickness:: 1.5-6mm

Length:: 15m

Working Temperature:: -180 ~ +250℃

Working Pressure:: ≤63Mpa

Working Medium:: Hydraulic Oil,Compressed Air

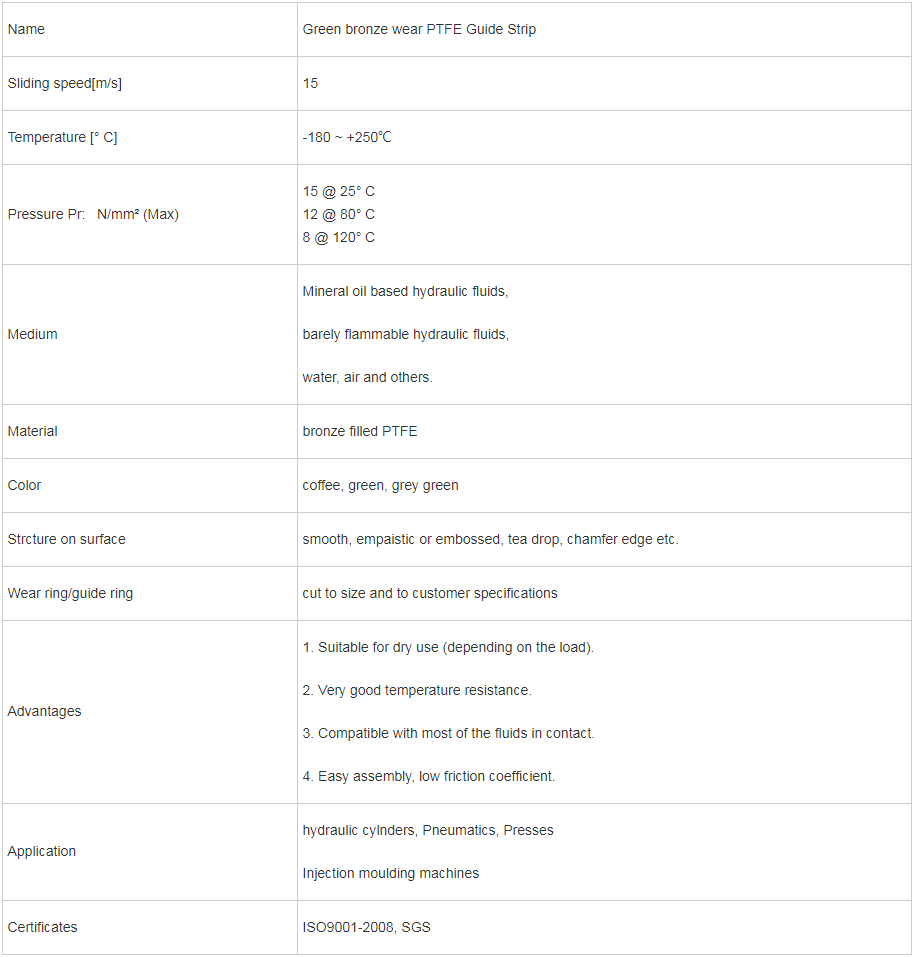

Product Specification

Name

Green bronze wear PTFE Guide Strip

Sliding speed[m/s]

15

Temperature [° C]

-180 ~ +250℃

Pressure Pr:   N/mm² (Max)

15 @ 25° C
12 @ 80° C
8 @ 120° C

Medium

Mineral oil based hydraulic fluids,

barely flammable hydraulic fluids,

water, air and others.

Material

bronze filled PTFE

Color

coffee, green, grey green

Strcture on surface

smooth, empaistic or embossed, tea drop, chamfer edge etc.

Wear ring/guide ring

cut to size and to customer specifications

Advantages

1. Suitable for dry use (depending on the load).

2. Very good temperature resistance.

3. Compatible with most of the fluids in contact.

4. Easy assembly, low friction coefficient.

Application

hydraulic cylnders, Pneumatics, Presses

Injection moulding machines

Certificates

ISO9001-2008, SGS


Product Packaging

(1)Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

(2)PTFE surface treated should be kept in dark place, can not be damaged.

Green bronze wear PTFE Guide Strip
.jpg


Company Profile

Green bronze wear PTFE Guide Strip
.jpg
