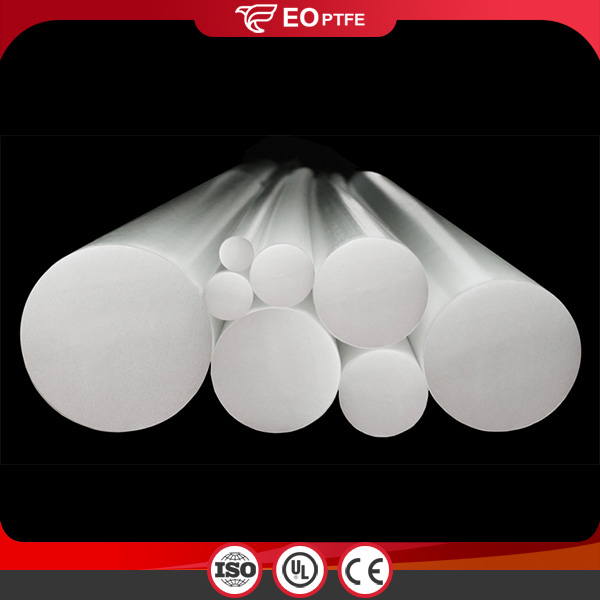

PTFE Pushed Pure Rod

PTFE rods are available in push rods and molded rods. In known plastics, PTFE has the best chemical and dielectric properties and can be used at temperatures from -180 ° C to +260 ° C. And with the lowest coefficient of friction, mainly for some long products and non-standard mechanical parts: seals / gaskets, rings, wear plates / seats, insulation parts, corrosion resistance industry, mechanical parts, lining, Oil and gas, petrochemical industry, chemical industry, instruments and equipment....

Send Inquiry

Product Description

PTFE (Teflon) is the mostly consumed category of florin plastics, Which has the lowest coefficient of friction in all the engineering plastics,but its properties remain at a useful level over a great temperature range — from -400 to 500°F (-240 to 260°C).

PTFE Pushed Pure Rod
.jpg

PTFE Teflon material has the following main characteristics: the excellent chemical corrosion-resistance, which is able to endure All kind of chemistry material. And it has rather good electricity-resistance, which is not affected by the temperature and is called“ Kind of plastics”. PTFE plastic has excellent corrosion-resistance, aging-resistance, high(low) temperature resistance, good lubrication and insulation, non-adhesiveness, toxicological harmless. It is widely used in industries like aviation, chemical industry, electric and electronics, bridge, mechanical manufacturing, textile, paper making, ceramics etc.

Product Specification

NOTE:We can offer other sizes of rods according to clients' requirement.

Type	Diameter(mm)	Length(mm)
Pushed Rod	1~22	≥200
Molded Rod	14~1000	50~300
Extruded Rod	5~100	≥500

Item	ASTM	Data	Unit
Mechanical Properties
Density	D792	2.1~ 2.2	g/m3
Tensile strength	D638	≥25 about 25 ~ 45	MPa
Elongation at break	D638	≥150 about 200~ 350	%
Compression strength	D695	24	MPa
ShoreD Hardness	D636	50-60	-
Friction coefficient	on steel	0.01	-
Thermal Properties
Working Temp		-180 ~ 260	°C
Melting point		330	°C
Produce Max. Temp		390	°C
Fire Resistance	UL94	V-0
Brittle point temperature		-268	°C
Electrical properties
Dielectric strength	D149	>1400	kV/mm
Volume resistivity	D257	>10¹⁸	Ω·cm
Surface Resistivity	D257	>10¹⁶	Ω
Dielectric constant	D150	2.1
Conventional properties
Chemical solvent resistance	Excellent
Water absorption (25℃ )	D570	0.01	24h/%
limit oxygen index	D2963	>95
