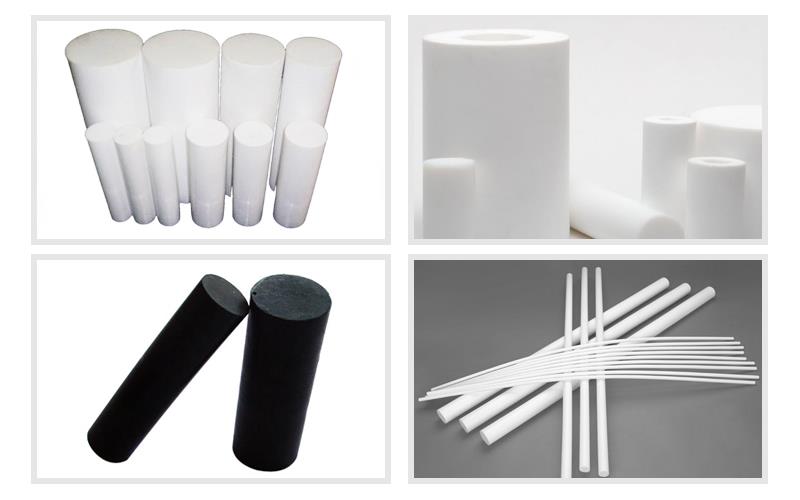

Extrusion PTFE Rod

Extrusion PTFE rod is an unfilled PTFE resin suitable for processing a variety of gaskets, seals and lubricants that work in corrosive media, and electrical insulation parts used at various frequencies. Rods by paste extrusion or plunger extrusion processes....

Send Inquiry

Product Description

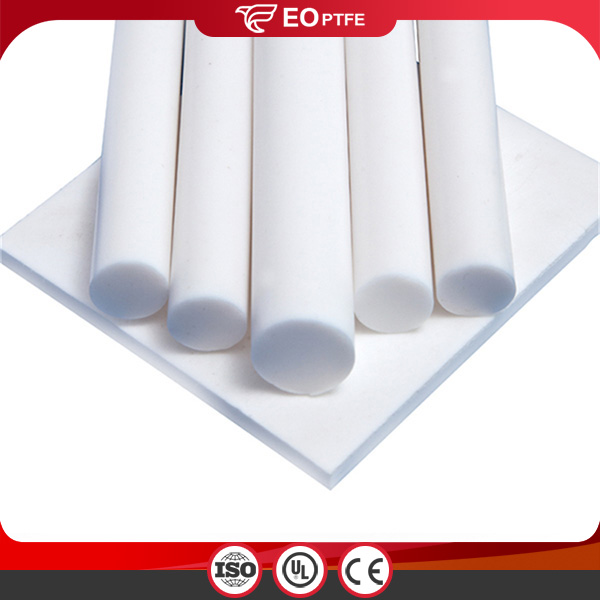

Extrusion PTFE rod
.jpg

Features of Extrusion PTFE rod:

1. White solid at room temperature, with a density of about 2200 kg/m3

2. High melting point is 600 K (327 °C; 620 °F)

3. Maintains high strength, toughness and self-lubrication at low temperatures down to 5 K (−268.15 °C; −450.67 °F)

4. Good flexibility at temperatures above 194 K (−79 °C; −110 °F)

5. Gains its properties from the aggregate effect of carbon-fluorine bonds, as do all fluorocarbons

6. Excellent dielectric properties, especially at high radio frequencies

7. Low friction, extremely high bulk resistivity

8. Extreme non-reactivity and high temperature rating

Product Specification

NOTE:We can offer other sizes of rods according to clients' requirement.

Type	Diameter(mm)	Length(mm)
Pushed Rod	1~22	≥200
Molded Rod	14~1000	50~300
Extruded Rod	5~100	≥500

Item	ASTM	Data	Unit
Mechanical Properties
Density	D792	2.1~ 2.2	g/m3
Tensile strength	D638	≥25 about 25 ~ 45	MPa
Elongation at break	D638	≥150 about 200~ 350	%
Compression strength	D695	24	MPa
ShoreD Hardness	D636	50-60	-
Friction coefficient	on steel	0.01	-
Thermal Properties
Working Temp		-180 ~ 260	°C
Melting point		330	°C
Produce Max.Temp		390	°C
Fire Resistance	UL94	V-0
Brittle point temperature		-268	°C
Electrical properties
Dielectric strength	D149	>1400	kV/mm
Volume resistivity	D257	>10¹⁸	Ω·cm
Surface Resistivity	D257	>10¹⁶	Ω
Dielectric constant	D150	2.1
Conventional properties
Chemical solvent resistance	Excellent
Water absorption (25℃ )	D570	0.01	24h/%
limit oxygen index	D2963	>95
