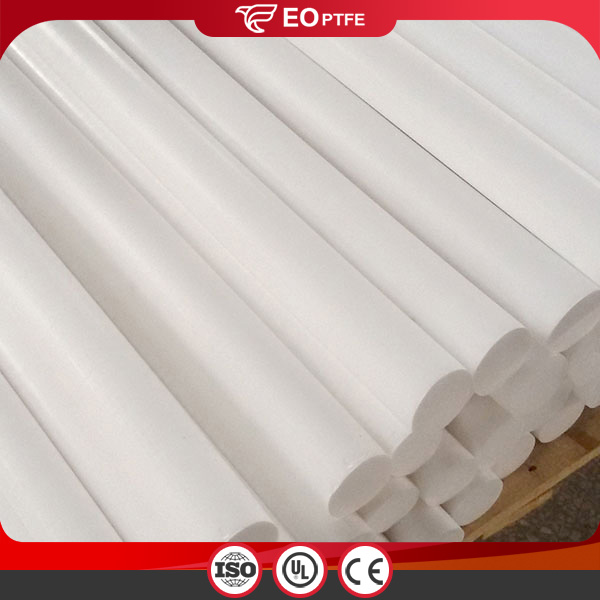

Virgin Materials Plastic PTFE Bar

Virgin Materials Plastic PTFE Bar is an unfilled PTFE resin suitable for processing a variety of gaskets, seals and lubricants that work in corrosive media, and electrical insulation parts used at various frequencies. Bars (which may contain recycled polytetrafluoroethylene resin) molded by molding, paste extrusion or plunger extrusion processes....

Send Inquiry

Material	Virgin PTFE. Specified materials are also ok
Color	Pure materials is White. Other color as order
Method	Extruded or mould
Certification	ISO9001, ISO14001, FDA, Rosh
MOQ	1kgs, specific szie according to stock
Sample	Free
Price	according to the specification and quantity, the more the cheaper.
Price

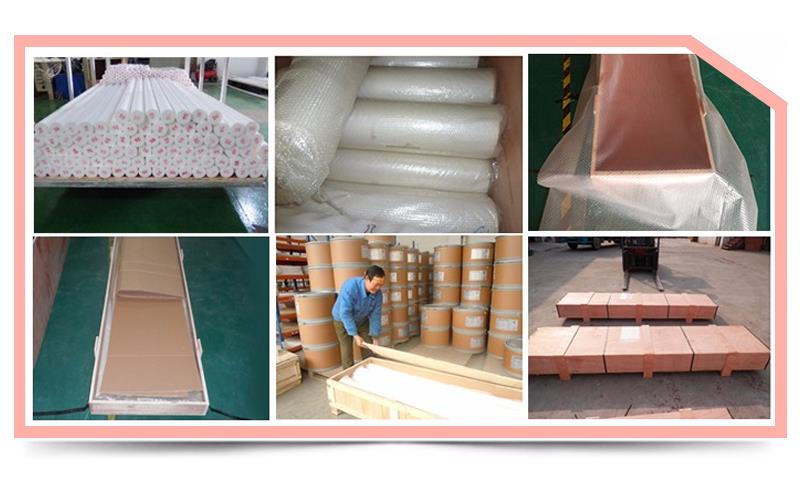

Package	Usually wooden case
Others	Can filled with other materials to enhance performance

PTFE Bar is an unfilled PTFE resin suitable for processing a variety of gaskets, seals and lubricants that work in corrosive media, and electrical insulation parts used at various frequencies. Bar (which can contain recycled polytetrafluoroethylene resin) molded by molding, paste extrusion or plunger extrusion.

Basically resistant to all chemicals except some fluorides and alkaline liquids.

Excellent mechanical properties include aging resistance, especially for bending and oscillating applications.

Specification

The General Specification of PTFE Rod

OD(mm)	Length(mm)	Length(mm)
1, 2, 3, 4	continuous length
5, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 28, 30, 32, 35, 40	1000	2000
45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100	1000	2000
110, 120, 130, 140, 150, 160, 170, 180, 190, 200	1000	2000
210, 220, 230, 240, 250, 260, 270, 280, 300	300
310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 490, 500	100

Custom specifications of PFFE Rod

Item	Dia.(mm)	Length(mm)
Paste Extruded Rod	1~4	According to customer's request
Plug Extruded Rod	4~200	500~2000
Molded Rod	5~500	10~300

Product Features

Main features of PTFE rod:

1. Temperature resistance ---It is able to work stably between -180°C to +260°C.

2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.

3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky things.

4. Anti-aging, weathering resistance.

5. Excellent insulation property.

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.

Properties of pure PFFE Rod

Item	ASTM	Data	Unit
Mechanical Properties
Density	D792	2.1~ 2.2	g/m3
Tensile strength	D638	≥25 about 25 ~ 45	MPa
Elongation at break	D638	≥150 about 200~ 350	%
Compression strength	D695	24	MPa
ShoreD Hardness	D636	50-60	-
Friction coefficient	on steel	0.01	-
Thermal Properties
Working Temp		-180 ~ 260	°C
Melting point		330	°C
Produce Max. Temp		390	°C
Fire Resistance	UL94	V-0
Brittle point temperature		-268	°C
Electrical properties
Dielectric strength	D149	>1400	kV/mm
Volume resistivity	D257	>10¹⁸	Ω·cm
Surface Resistivity	D257	>10¹⁶	Ω
Dielectric constant	D150	2.1
Conventional properties
Chemical solvent resistance	Excellent
Water absorption (25℃ )	D570	0.01	24h/%
limit oxygen index	D2963	>95

Application

1. Chemical: It can be used as anti-corrosion material to manufacture various anti-corrosion parts such as pipes, valves, pumps and fittings. For chemical equipment, linings and coatings for reactors, distillation columns and anti-corrosion equipment can be made.

2. Mechanical: It can be used as self-lubricating bearings, piston rings, oil seals and seals. Self-lubricating reduces wear and heat and reduces power consumption.

3. Electronic and electrical aspects: mainly used in the manufacture of various wire and cable, battery electrodes, battery separators, printed circuit boards, etc.

4. Medical materials: It can be used as a material for various medical devices and artificial organs by utilizing its heat-resistance, water-resistance and non-toxic properties. The former such as sterile filters, beakers, artificial heart and lung devices, the latter such as artificial blood vessels, heart and esophagus. It has been widely used as a sealing material and a filling material.

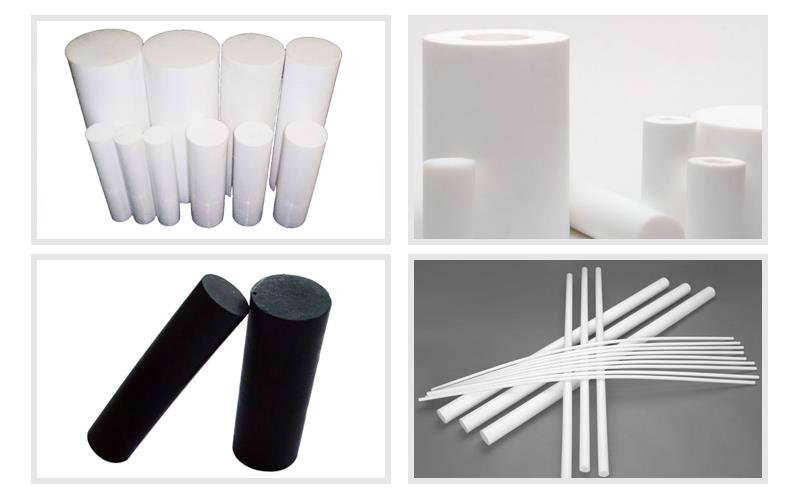

Product Show

Virgin materials Plastic PTFE bar .jpg
