Filled Bronze PTFE Bar

Filled Bronze PTFE Bar

Product Name:Filled Bronze ptfe bar
Sample: Free
Method: Extruded or mould
Materials: PTFE
Size: Accept customization
Payment Terms: L/C, T/T, PayPal, Western Union
...

Send Inquiry

Product Description

Filled Bronze ptfe bar is used as a resistant high & low temperature material, corrosion-resistant materials, insulation materials in the atomic energy, defense, aerospace, electronics, electrical, chemical industry, machinery, instruments, meters, construction, textile, metal surface treatment, pharmaceutical, medical, food, and metallurgical smelting industry, and become irreplaceable products.

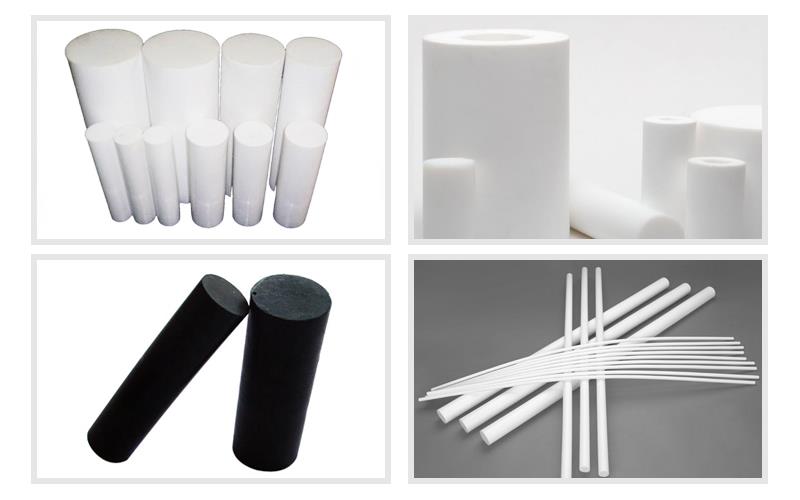

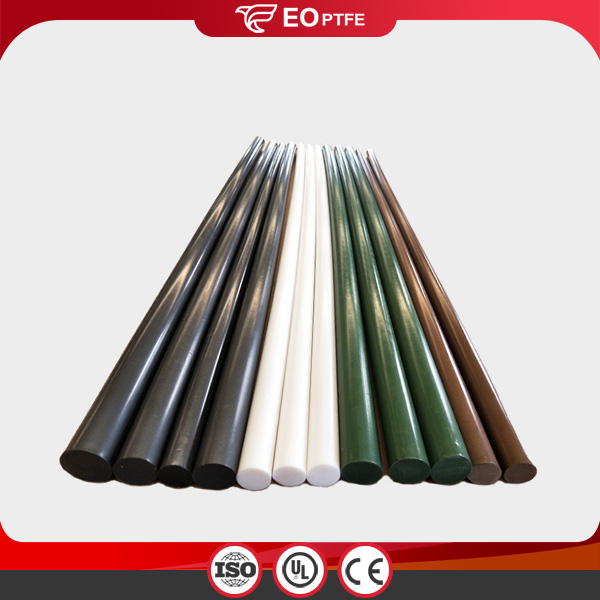

Filled Bronze ptfe bar
.jpg

Benefits of Filled Bronze ptfe bar:

● Superior endurance in corrosion

● Superior endurance in seasonal change

● Non-flammable, limited oxygen index is under 90.

● Low friction coefficient

● Non-viscous

● Superior endurance in high & low temperature, can be used -190~260°C.

● High electricity insulation

● High electricity resistance coefficient

● Self-lubricating

● Atmospheric aging resistance

● Radiation-resistant properties and low permeability

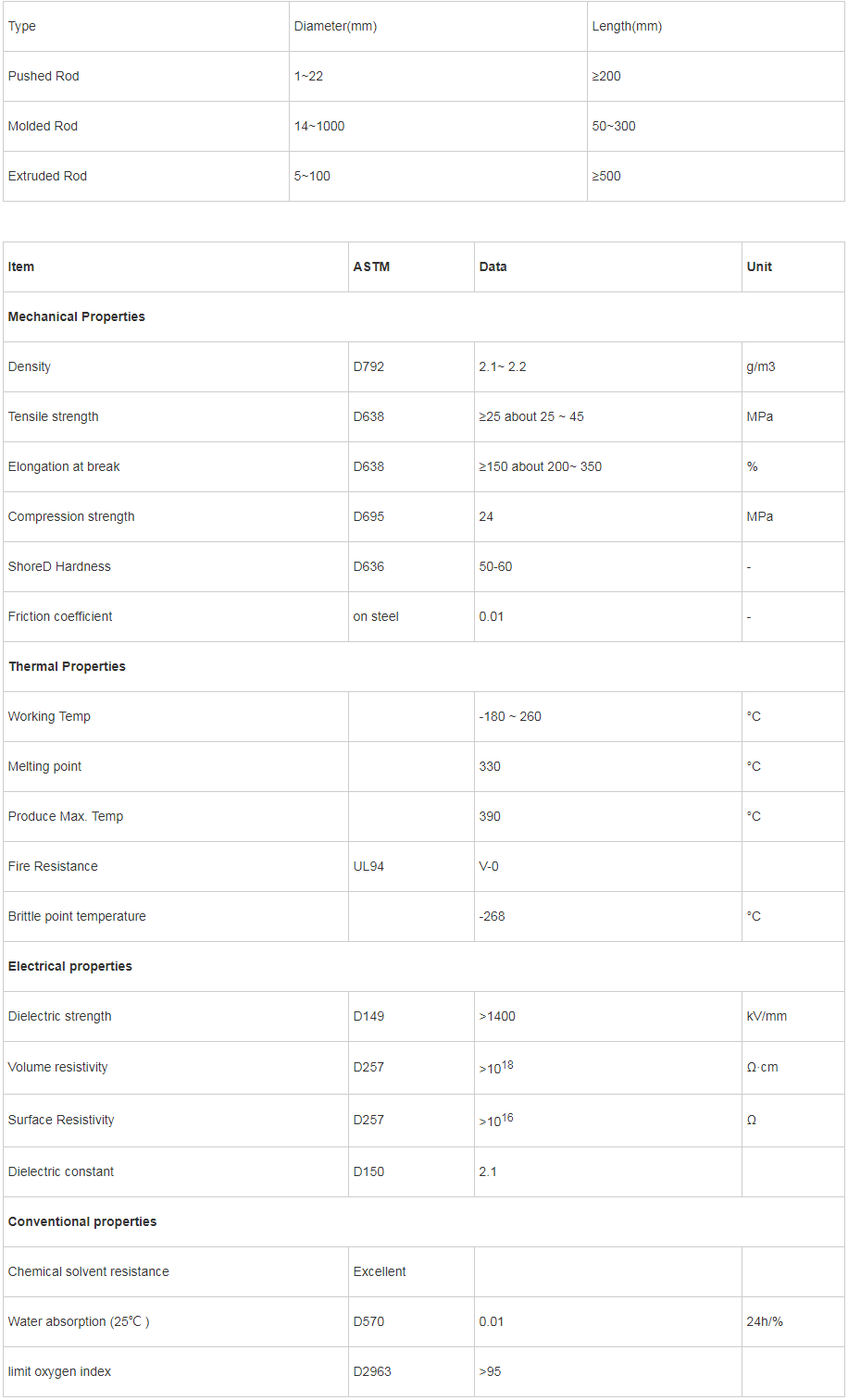

Product Specification

NOTE:We can offer other sizes of rods according to clients' requirement.

Type

Diameter(mm)

Length(mm)

Pushed Rod

1~22

≥200

Molded Rod

14~1000

50~300

Extruded Rod

5~100

≥500


Item

ASTM

Data

Unit

Mechanical Properties

Density

D792

2.1~ 2.2

g/m3

Tensile strength

D638

≥25 about 25 ~ 45

MPa

Elongation at break

D638

≥150 about 200~ 350

%

Compression strength

D695

24

MPa

ShoreD Hardness

D636

50-60

-

Friction coefficient

on steel

0.01

-

Thermal Properties

Working Temp

-180 ~ 260

°C

Melting point

330

°C

Produce Max. Temp

390

°C

Fire Resistance

UL94

V-0

Brittle point temperature

-268

°C

Electrical properties

Dielectric strength

D149

>1400

kV/mm

Volume resistivity

D257

>1018

Ω·cm

Surface Resistivity

D257

>1016

Ω

Dielectric constant

D150

2.1

Conventional properties

Chemical solvent resistance

Excellent

Water absorption (25℃ )

D570

0.01

24h/%

limit oxygen index

D2963

>95


Product Packaging

Packed by plastic bags,put into Plywood cases that don't need fumigation. Other packing is customized according to client's requirements.

Filled Bronze ptfe bar
.jpg
